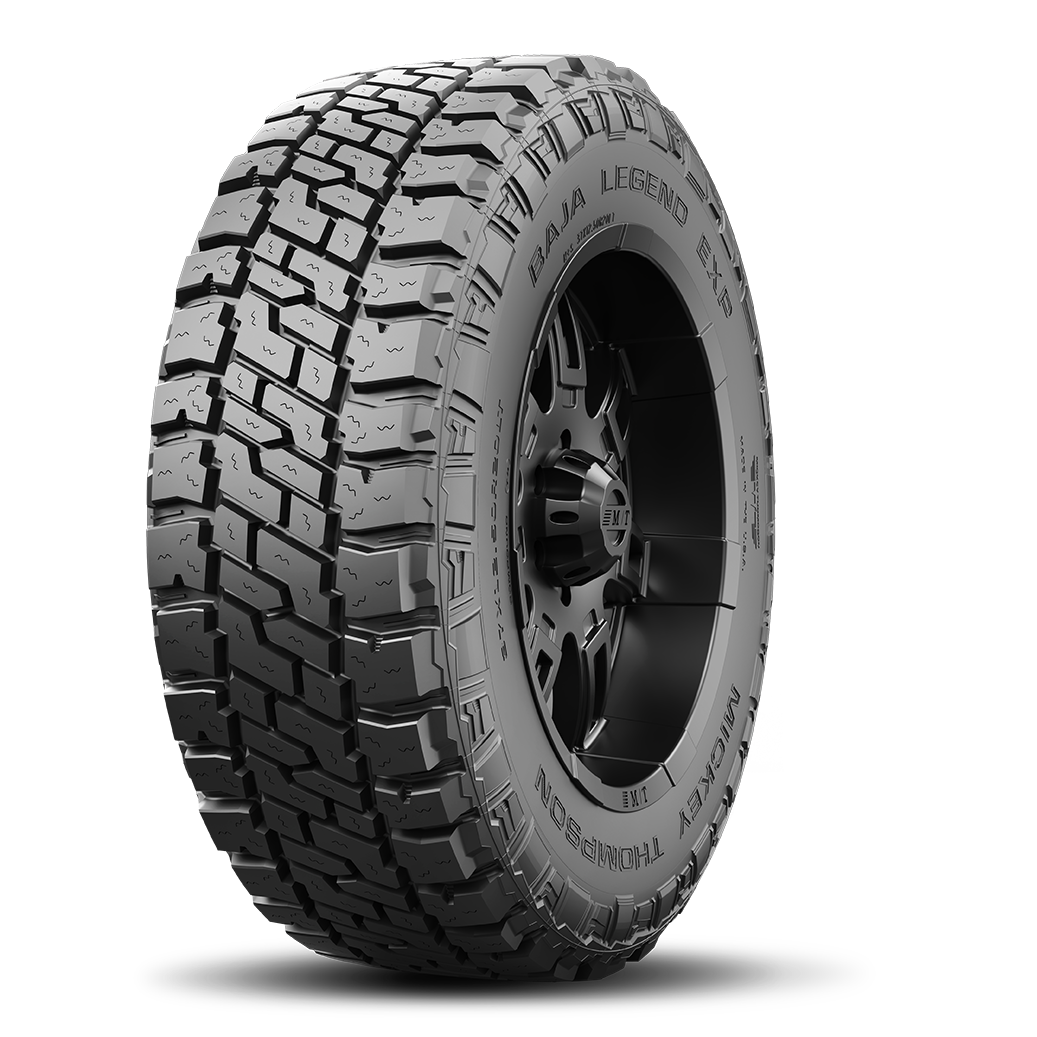

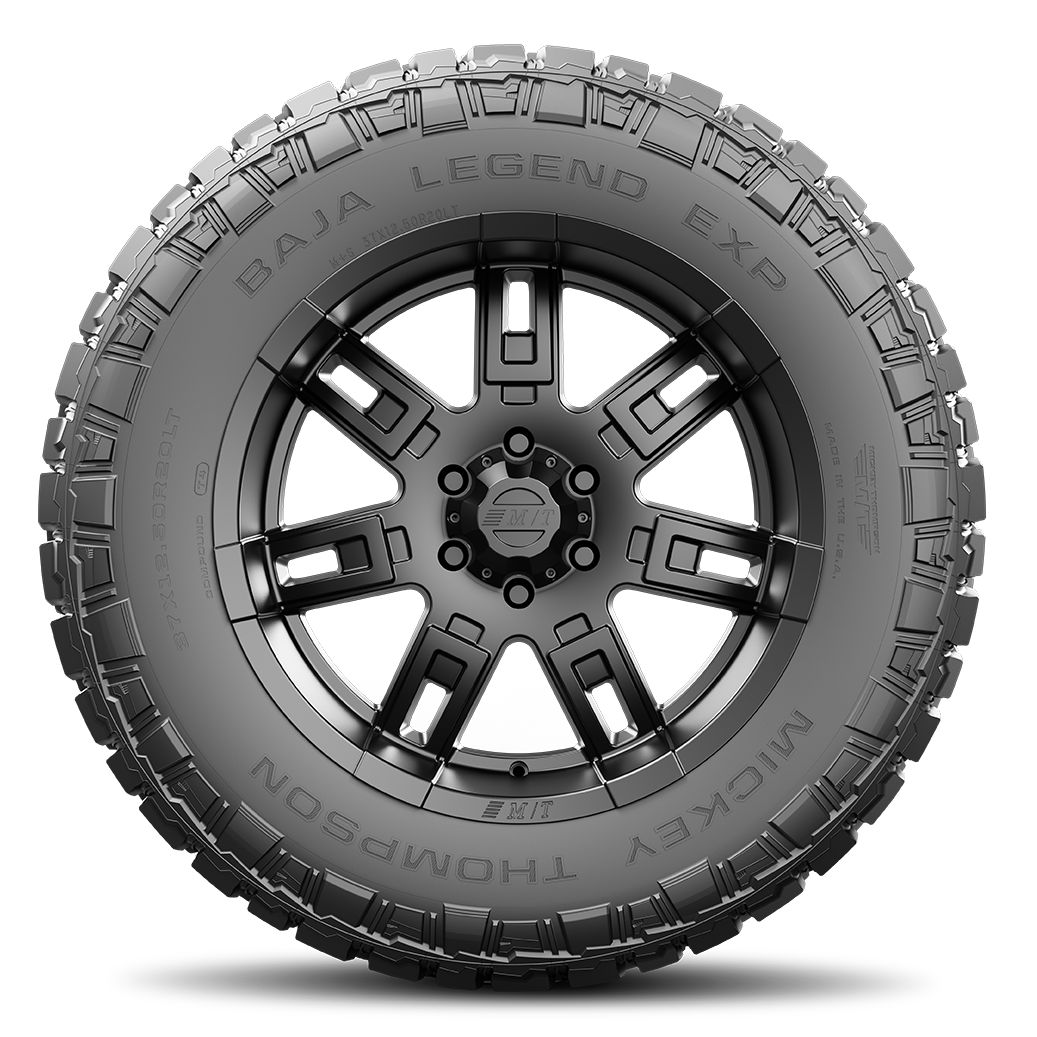

BAJA LEGEND^™ EXP

Hybrid All-Terrain Tire

The Baja Legend™ EXP hybrid all-terrain was developed with a blend of premium materials and legendary design to provide a balance of on-road performance and off-road traction. Featuring legendary Mickey Thompson Sidebiters®, large surface area tread elements and wide voids provide the ultimate on-road and trail performance. T4 silica-reinforced compound fortifies wet performance treadwear durability and tread life backed with a 50,000-mile treadwear warranty. The next-gen high tensile body ply construction provides a smooth ride and durability in a lightweight package.

50,000-mile treadwear warranty

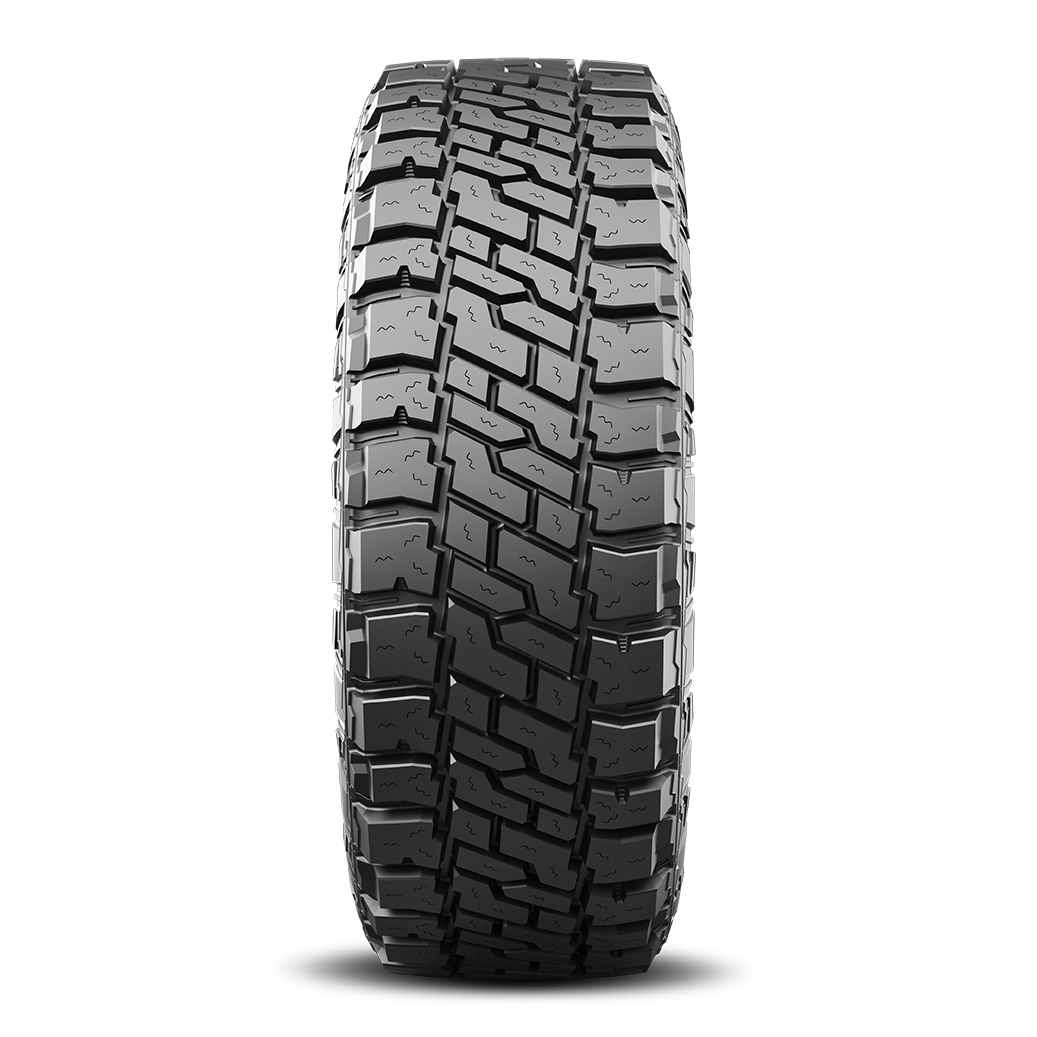

Legendary “Baja Inspired” tread styling with large surface area tread elements/wide voids for an aggressive
appearance and great on/off-road performance
T4 Silica-Reinforced Compound provides excellent wet handling/braking performance,
cut & chip resistance and lasting treadwear
Next-gen lightweight high tensile body plies provide a smooth ride and durability
Optimized tread design and geometry help to reduce noise

Sizes

15 INCH

TIRE SIZE / EQUIV. SIZE	LOAD RANGE	SIDEWALL	SERVICE DESC	MEAS RIM APPROVED RIMS	MAX LOAD MAX INFL	O.D. IN.	SECT. WIDTH IN.	TREAD WIDTH IN.	TREAD DEPTH 32NDS	APX. WT. LBS.	MATL #.	PART #	PRODUCT CODE	CROSS REF#
31X10.50R15LT	C	RWL	109Q	8.5 7.0-9.0	2,270 lbs @ 50 psi.	30.8	10.9	8.2	18.5	45	247530	52510	331055003	90000067166	Buy
33X12.50R15LT	C	RWL	108Q	10.0 8.0-11.0	2,205 lbs @ 35 psi.	32.9	12.1	9.8	18.5	55	247541	52532	331066003	90000067167	Buy
35X12.50R15LT	C	RWL	113Q	10.0 8.0-11.0	2,535 lbs @ 35 psi.	34.9	12.2	9.9	18.5	60	247557	52552	331082003	90000067168	Buy

16 INCH

TIRE SIZE / EQUIV. SIZE	LOAD RANGE	SIDEWALL	SERVICE DESC	MEAS RIM APPROVED RIMS	MAX LOAD MAX INFL	O.D. IN.	SECT. WIDTH IN.	TREAD WIDTH IN.	TREAD DEPTH 32NDS	APX. WT. LBS.	MATL #.	PART #	PRODUCT CODE	CROSS REF#
LT245/70R16 30X9.50R16LT	E	RWL	118Q	7.0 6.5-8.0	2,910 lbs @ 80 psi.	29.8	9.8	7.8	18.5	46	249404	52609	331280003	90000067169	Buy
LT265/70R16 31X10.50R16LT	E	RWL	121Q	8.0 7.0-9.0	3,195 lbs @ 80 psi.	30.9	10.7	8.6	18.5	50	249753	52610	331228003	90000067170	Buy
LT265/75R16 32X10.50R16LT	E	RWL	123Q	7.5 7.0-9.0	3,415 lbs @ 80 psi.	31.9	10.1	8.0	18.5	50	247533	52620	331058003	90000067171	Buy
LT285/75R16 33X11.50R16LT	E	RWL	126Q	8.0 7.5-9.5	3,750 lbs @ 80 psi.	33	11.3	8.6	18.5	57	247542	52631	331067003	90000067172	Buy
LT305/70R16 33X12.50R16LT	E	RWL	124Q	9.0 8.0-10.0	3,525 lbs @ 65 psi.	33.1	12.0	9.7	18.5	58	247545	52632	331070003	90000067173	Buy
LT315/75R16 35X12.50R16LT	E	RWL	127Q	8.5 8.0-11.0	3,860 lbs @ 65 psi.	34.8	11.9	9.8	18.5	64	247555	52652	331080003	90000067174	Buy

17 INCH

TIRE SIZE / EQUIV. SIZE	LOAD RANGE	SIDEWALL	SERVICE DESC	MEAS RIM APPROVED RIMS	MAX LOAD MAX INFL	O.D. IN.	SECT. WIDTH IN.	TREAD WIDTH IN.	TREAD DEPTH 32NDS	APX. WT. LBS.	MATL #.	PART #	PRODUCT CODE	CROSS REF#
LT265/65R17 31X10.50R17LT	E	RWL	120Q	8.0 7.5-9.5	3,085 lbs @ 80 psi.	30.8	10.6	8.8	18.5	50	247531	52710	331056003	90000067175	Buy
LT265/70R17 32X10.50R17LT	E	RWL	121Q	8.0 7.0-9.0	3,195 lbs @ 80 psi.	31.9	10.8	8.4	18.5	54	247532	52720	331057003	90000067176	Buy
LT275/70R17 32X11.00R17LT	E	RWL	121Q	8.0 7.0-9.0	3,195 lbs @ 80 psi.	32.5	10.7	8.8	18.5	55	249754	52721	331237003	90000067177	Buy
LT285/70R17 33X11.50R17LT	E	RWL	121Q	8.5 7.5-9.5	3,195 lbs @ 80 psi.	33.1	11.5	9.1	18.5	57	247544	52731	331069003	90000067178	Buy
LT305/65R17 33X12.50R17LT	E	RWL	121Q	9.0 8.5-11.0	3,195 lbs @ 65 psi.	32.9	12.3	9.9	18.5	60	247539	52732	331064003	90000067179	Buy
LT295/70R17 34X12.00R17LT	E	RWL	121Q	8.5 7.5-10.0	3,195 lbs @ 80 psi.	33.6	11.8	9.5	18.5	59	247548	52742	331073003	90000067180	Buy
35X12.50R17LT	D	RWL	119Q	10.0 8.5-11.0	3,000 lbs @ 50 psi.	34.5	12.9	10.0	18.5	64	247552	52759	331077003	90000067181	Buy
LT315/70R17 35X12.50R17LT	D	RWL	121Q	9.5 8.0-11.0	3,195 lbs @ 50 psi.	34.6	12.8	10.0	18.5	62	247553	52752	331078003	90000067182	Buy
37X12.50R17LT	D	BLK	124Q	10.0 8.5-11.0	3,525 lbs @ 50 psi.	36.4	13.1	10.0	18.5	70	249125	52772	331229017	90000067183	Buy

18 INCH

TIRE SIZE / EQUIV. SIZE	LOAD RANGE	SIDEWALL	SERVICE DESC	MEAS RIM APPROVED RIMS	MAX LOAD MAX INFL	O.D. IN.	SECT. WIDTH IN.	TREAD WIDTH IN.	TREAD DEPTH 32NDS	APX. WT. LBS.	MATL #.	PART #	PRODUCT CODE	CROSS REF#
LT265/60R18 31X10.50R18LT	E	BLK	119Q	8.0 7.5-9.5	3,000 lbs @ 80 psi.	30.5	10.7	8.8	18.5	51	247349	52810	331054002	90000067184	Buy
LT275/65R18 32X11.00R18LT	E	RWL	123Q	8.0 7.5-9.5	3,415 lbs @ 80 psi.	32.3	11.0	8.8	18.5	53	247535	52821	331060003	90000067185	Buy
LT265/70R18 33X10.50R18LT	E	RWL	124Q	8.0 7.0-9.0	3,525 lbs @ 80 psi.	32.9	10.7	8.9	18.5	54	247538	52830	331063003	90000067186	Buy
LT275/70R18 33X11.00R18LT	E	RWL	125Q	8.0 7.0-9.0	3,640 lbs @ 80 psi.	33.4	11.0	8.8	18.5	55	247546	52837	331071003	90000067187	Buy
LT285/65R18 33X11.50R18LT	E	RWL	125Q	8.5 8.0-10.0	3,640 lbs @ 80 psi.	33	11.5	9.2	18.5	58	247543	52831	331068003	90000067188	Buy
LT305/60R18 33X12.50R18LT	F	RWL	126Q	9.0 8.5-11.0	3,750 lbs @ 80 psi.	32.5	12.1	10.0	18.5	64	247536	52832	331061003	90000067189	Buy
LT295/70R18 34X12.00R18LT	E	BLK	129Q	8.5 7.5-10.0	4,080 lbs @ 80 psi.	34.4	12.0	9.5	18.5	61	247550	52842	331075002	90000067190	Buy
35X12.50R18LT	D	RWL	118Q	10.0 8.5-11.0	2,910 lbs @ 50 psi.	34.5	12.6	10.0	18.5	65	247551	52859	331076003	90000067191	Buy
LT305/70R18 35X12.50R18LT	E	RWL	126Q	9.0 8.5-10.0	3,750 lbs @ 65 psi.	35.1	12.5	9.9	18.5	65	247558	52852	331083003	90000067192	Buy

20 INCH

TIRE SIZE / EQUIV. SIZE	LOAD RANGE	SIDEWALL	SERVICE DESC	MEAS RIM APPROVED RIMS	MAX LOAD MAX INFL	O.D. IN.	SECT. WIDTH IN.	TREAD WIDTH IN.	TREAD DEPTH 32NDS	APX. WT. LBS.	MATL #.	PART #	PRODUCT CODE	CROSS REF#
LT275/55R20 32X11.00R20LT	E	BLK	120Q	8.5 7.5-9.5	3,085 lbs @ 80 psi.	32.3	10.8	8.9	18.5	57	247534	52021	331059002	90000067193	Buy
LT265/60R20 33X10.50R20LT	E	BLK	121Q	8.0 7.5-9.5	3,195 lbs @ 80 psi.	32.9	10.6	8.7	18.5	56	247540	52030	331065002	90000067194	Buy
LT275/60R20 33X11.00R20LT	E	BLK	123Q	8.0 7.5-9.5	3,415 lbs @ 80 psi.	32.9	10.9	9.0	18.5	59	249353	52037	331018002	90000067195	Buy
LT285/55R20 33X11.50R20LT	E	BLK	122Q	9.0 8.0-10.0	3,305 lbs @ 80 psi.	32.6	11.7	10.3	18.5	59	247537	52031	331062002	90000067196	Buy
LT295/55R20 33X12.00R20LT	E	BLK	123Q	9.5 8.0-10.5	3,415 lbs @ 80 psi.	33.1	11.7	10.1	18.5	63	249354	52038	331017002	90000067197	Buy
33X12.50R20LT	E	BLK	114Q	10.0 8.5-11.0	2,600 lbs @ 65 psi.	32.8	12.6	10.6	18.5	63	249355	52039	331010002	90000067198	Buy
LT305/55R20 33X12.50R20LT	F	BLK	125Q	9.5 8.5-11.0	3,640 lbs @ 80 psi.	33.4	12.5	10.1	18.5	64	247547	52032	331072002	90000067199	Buy
LT275/65R20 34X11.00R20LT	E	BLK	126Q	8.0 7.5-9.5	3,750 lbs @ 80 psi.	34.7	11.5	9.1	18.5	61	247554	52041	331079002	90000067200	Buy
LT285/60R20 34X11.50R20LT	E	BLK	125Q	8.5 8.0-10.0	3,640 lbs @ 80 psi.	33.9	11.4	9.6	18.5	62	247549	52048	331074002	90000067201	Buy
LT295/60R20 34X12.00R20LT	E	BLK	126Q	8.5 8.0-10.5	3,750 lbs @ 80 psi.	34.3	11.6	9.7	18.5	63	249351	52042	331132002	90000067202	Buy
LT295/65R20 35X12.00R20LT	E	BLK	129Q	8.5 8.0-10.5	4,080 lbs @ 80 psi.	35.4	11.6	9.7	18.5	66	249352	52058	331144002	90000067203	Buy
35X12.50R20LT	F	BLK	125Q	10.0 8.5-11.0	3,640 lbs @ 80 psi.	34.8	12.5	9.9	18.5	65	247556	52052	331081002	90000067204	Buy
37X12.50R20LT	E	BLK	126Q	10.0 8.5-11.0	3,750 lbs @ 65 psi.	36.5	12.4	9.8	18.5	68	247560	52072	331085002	90000067205	Buy
37X13.50R20LT	E	BLK	127Q	11.0 8.5-12.0	3,860 lbs @ 65 psi.	36.5	13.3	10.7	18.5	74	247559	52073	331084002	90000067206	Buy

Note: All specifications are for single rear tire applications.
