Classic Baja Lock™
Classic Baja Lock™

Classic Baja Lock™

M/T CLASSIC SERIES

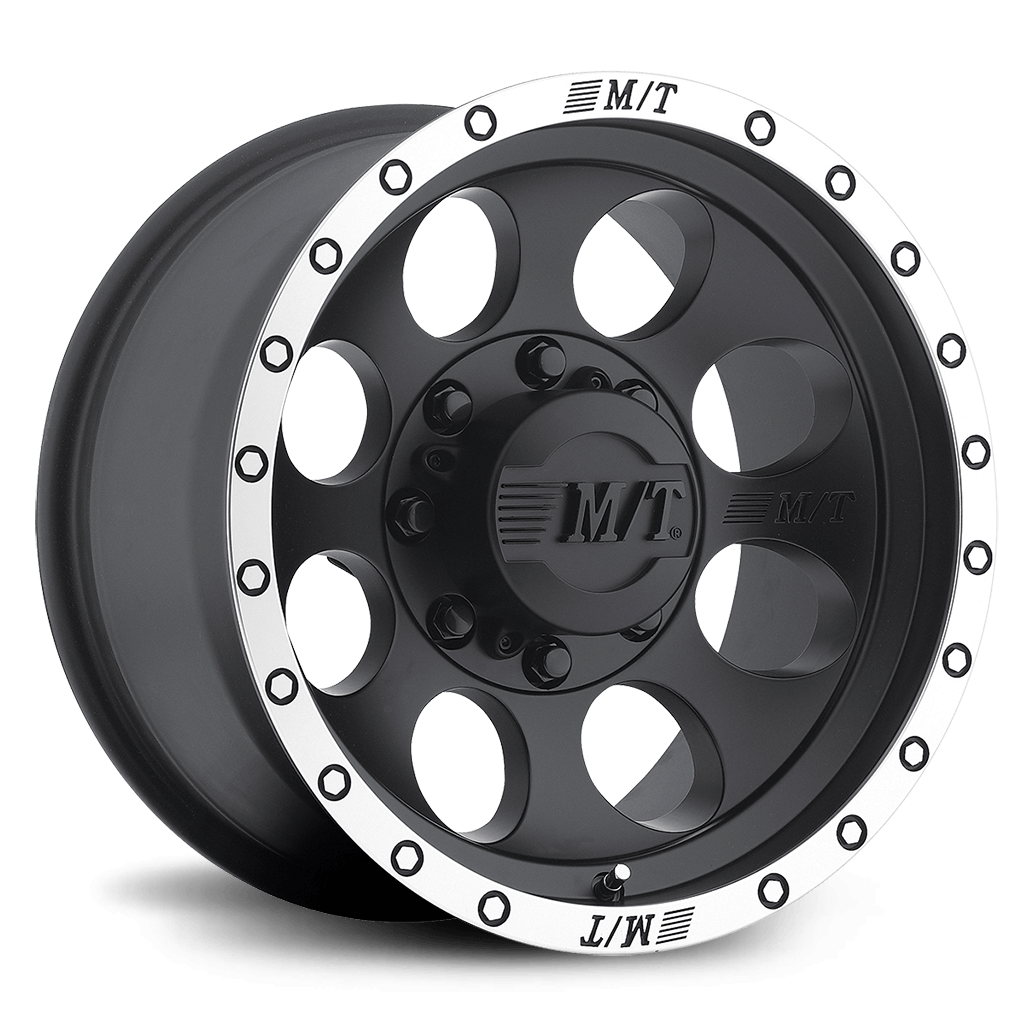

The Mickey Thompson Classic Baja Lock wheel features the classic 8-hole design in a matte black finish with a protective clear coat. The embossed M/T logo is assurance of quality, strength and dependability. The Classic Baja Lock is available in sizes 15x8 through 17x9

  • Simulated bead lock for an authentic look
  • High load rating for strength and durability
  • Non-corrosive black screw on center cap
  • Lifetime limited warranty against structural defects
  • 1-year finish warranty


Sizes

15 INCH

SIZE BOLT CIR. BACK SPACE IN. OFFSET MM HUB BORE MM. MAX. LOAD LB. APP. WT. LB. REPL. CAP* MATL #. PART #
15X8
 5X4.5 3.6 -22 81.48 2,000 19 90000019995 90000020045 1958421 Buy
15X8
 5X5.5 3.6 -22 106.50 2,000 18 90000019996 90000020046 1958402 Buy
15X8
 6X5.5 3.6 -22 106.10 2,000 18 90000019997 90000020047 1958412 Buy
15X10
 5X4.5 3.6 -45 81.48 2,000 21 90000019995 90000020048 1950421 Buy
15X10
 5X5.5 3.6 -45 106.50 2,600 21 90000019996 90000020049 1950402 Buy
15X10
 6X5.5 3.6 -45 106.10 2,600 19 90000019997 90000020070 1950412 Buy
15X12
 5X5.5 3.6 -73 106.50 2,600 22 90000019996 90000020071 1952402 Buy
15X12
 6X5.5 3.6 -73 106.10 2,600 24 90000019997 90000020072 1952412 Buy

16 INCH

SIZE BOLT CIR. BACK SPACE IN. OFFSET MM HUB BORE MM. MAX. LOAD LB. APP. WT. LB. REPL. CAP* MATL #. PART #
16X8
 5X4.5 4.5 0 81.48 2,000 22 90000019995 90000020075 1968421 Buy
16X8
 5X5.5 4.5 0 106.50 2,600 22 90000019996 90000020076 1968402 Buy
16X8
 6X5.5 4.5 0 106.10 2,600 22 90000019997 90000020077 1968412 Buy
16X8
 6X5.5 3.6 -22 106.10 2,600 23 90000019997 90000020078 1968413 Buy
16X8
 8X170 4.0 -12 125.20 3,640 23 90000019999 90000020080 1968170 Buy
16X8
 8X6.5 4.0 -12 125.20 3,250 23 90000019998 90000020079 1968482 Buy
16X10
 6X5.5 4.5 -25 106.10 2,600 25 90000019997 90000020081 1960412 Buy
16X10
 8X170 4.5 -25 125.20 3,640 25 90000019999 90000020083 1960170 Buy
16X10
 8X6.5 4.5 -25 125.20 3,250 26 90000019998 90000020082 1960482 Buy
16X12
 8X170 4.5 -50 125.20 3,640 28 90000019999 90000020085 1962170 Buy
16X12
 8X6.5 4.5 -50 125.20 3,250 27 90000019998 90000020084 1962482 Buy

17 INCH

SIZE BOLT CIR. BACK SPACE IN. OFFSET MM HUB BORE MM. MAX. LOAD LB. APP. WT. LB. REPL. CAP* MATL #. PART #
17X9
 5X5 4.5 -12 78.08 2,600 28 90000019995 90000020086 1979431 Buy
17X9
 5X5.5 4.5 -12 106.48 2,600 28 90000019996 90000020087 1979402 Buy
17X9
 6X135 5.0 0 87.10 2,600 27 90000020020 90000020088 1979462 Buy
17X9
 6X5.5 4.5 -12 106.10 2,600 27 90000019997 90000020089 1979412 Buy
17X9
 8X170 5.0 0 125.20 3,640 26 90000019999 90000020091 1979170 Buy
17X9
 8X6.5 5.0 0 125.20 3,250 26 90000019998 90000020090 1979482 Buy

IMPORTANT WHEEL FITMENT NOTES

All Mickey Thompson Classic Series, SideBiter®, and M/T Metal Series wheels require (60-Degree) Bulge Acorn (Cone Bulge) Seat Lug Nuts. Mickey Thompson recommends Duplex Bulge Acorn Lug Nuts on vehicles of GVWR of 6,500 lbs. or greater.

All Deegan 38 Series wheels use 60 Degree Conical Bulge Seat lugs but will also accept E/T Style lug nuts which provide a lug-centric installation.

For All 6x5.5 Bolt Circle Wheels: Hub Centering Ring included for late Model Chevrolet/GMC applications.

Center caps are not available for certain applications including 1997 & earlier Ford 3/4 & 1-ton pickups, 2002 & earlier Dodge/Ram 3/4 & 1-ton pickups, 1986 & earlier Jeep, CJ models & earlier Toyota Land Cruiser models.

Open caps are available for 5, 6 and 8 lug Classic Series wheels, separately.

NOTE: All dual drill wheels in the MT METAL line are cover-style caps—no exposed lugs.
