MT Open 5 Satin Black

MT Pro Series

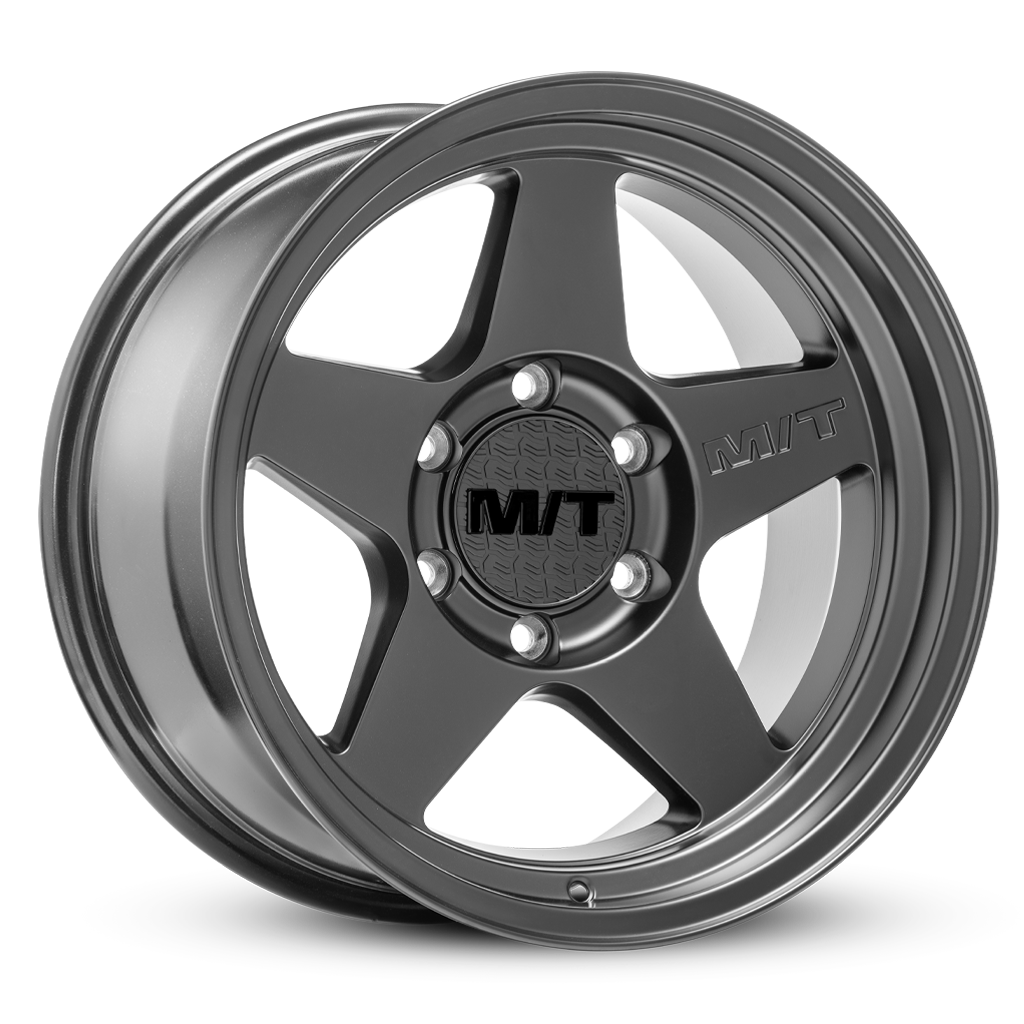

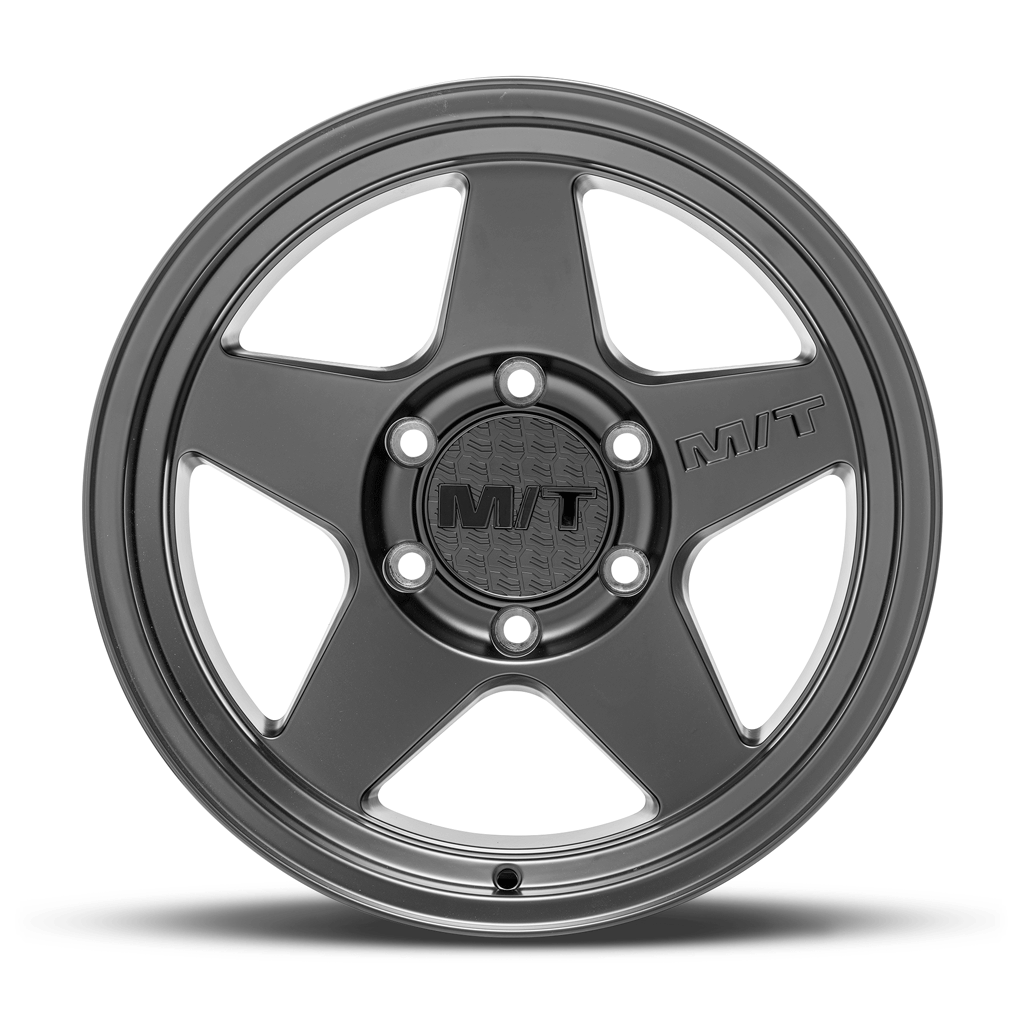

The MT Open 5 is a wheel designed for trucks and SUVs, perfect for adventurers who want to stand out. Featuring a modern 5-spoke design, a 2-step lip, and a Satin Black finish for a bold, clean look.

  • A sharp, bold, and modern 5-spoke design
  • Modern M/T Tread press-in cap
  • 17", 18", and 20" diameter options


  • Sizes

Sizes

17 INCH

SIZE BOLT CIR. BACK SPACE IN. OFFSET MM HUB BORE MM. MAX. LOAD LB. APP. WT. LB. REPL. CAP* MATL #. PART # PRODUCT CODE CROSS REF#
17X9
5X5 4.5 -12 71.60 2,500 23 274690 274270 274270 226100383 226100383 Buy
17X9
5X5.5 4.5 -12 108.10 2,500 23 274689 274531 274531 226100384 226100384 Buy
17X9
6X120 4.8 -5 67.01 2,500 23 274691 274532 274532 226100385 226100385 Buy
17X9
6X135 4.5 -12 87.10 2,500 23 274690 274534 274534 226100387 226100387 Buy
17X9
6X5.5 5.0 0 108.10 2,500 23 274689 274535 274535 226100388 226100388 Buy
17X9
6X5.5 4.5 -12 108.10 2,500 23 274689 274536 274536 226100389 226100389 Buy

18 INCH

SIZE BOLT CIR. BACK SPACE IN. OFFSET MM HUB BORE MM. MAX. LOAD LB. APP. WT. LB. REPL. CAP* MATL #. PART # PRODUCT CODE CROSS REF#
18X9
5X150 5.0 0 110.11 2,500 24 274689 274539 274539 226100392 226100392 Buy
18X9
5X5 4.5 -12 71.60 2,500 24 274690 274537 274537 226100390 226100390 Buy
18X9
5X5.5 5.0 0 108.10 2,500 24 274689 274538 274538 226100391 226100391 Buy
18X9
6X120 4.8 -5 67.01 2,500 24 274691 274540 274540 226100393 226100393 Buy
18X9
6X135 5.0 0 87.10 2,500 24 274690 274541 274541 226100394 226100394 Buy
18X9
6X5.5 5.0 0 108.10 2,500 24 274689 274542 274542 226100395 226100395 Buy

20 INCH

SIZE BOLT CIR. BACK SPACE IN. OFFSET MM HUB BORE MM. MAX. LOAD LB. APP. WT. LB. REPL. CAP* MATL #. PART # PRODUCT CODE CROSS REF#
20X9
5X150 5.0 0 110.11 2,500 29 274689 274545 274545 226100398 226100398 Buy
20X9
5X5 5.0 0 71.60 2,500 29 274690 274543 274543 226100396 226100396 Buy
20X9
5X5.5 5.0 0 108.10 2,500 29 274689 274544 274544 226100397 226100397 Buy
20X9
6X135 5.0 0 87.10 2,500 29 274690 274546 274546 226100399 226100399 Buy
20X9
6X5.5 5.0 0 108.10 2,500 29 274689 274547 274547 226100400 226100400 Buy

IMPORTANT WHEEL FITMENT NOTES
All Mickey Thompson Classic Series, SideBiter®, and M/T Metal Series wheels require (60-Degree) Bulge Acorn (Cone Bulge) Seat Lug Nuts. Mickey Thompson recommends Duplex Bulge Acorn Lug Nuts on vehicles of GVWR of 6,500 lbs. or greater.

All Deegan 38 Series wheels use 60 Degree Conical Bulge Seat lugs but will also accept E/T Style lug nuts which provide a lug-centric installation.

Not suitable for use on 2022 to present Toyota Tundra models due to insufficient fastener thread engagement

For All 6x5.5 Bolt Circle Wheels: Hub Centering Ring included for late Model Chevrolet/GMC applications.

Center caps are not available for certain applications including 1997 & earlier Ford 3/4 & 1-ton pickups, 2002 & earlier Dodge/Ram 3/4 & 1-ton pickups, 1986 & earlier Jeep, CJ models & earlier Toyota Land Cruiser models.

Open caps are available for 5, 6 and 8 lug Classic Series wheels, separately.

NOTE: All dual drill wheels in the MT METAL line are cover-style caps—no exposed lugs.
