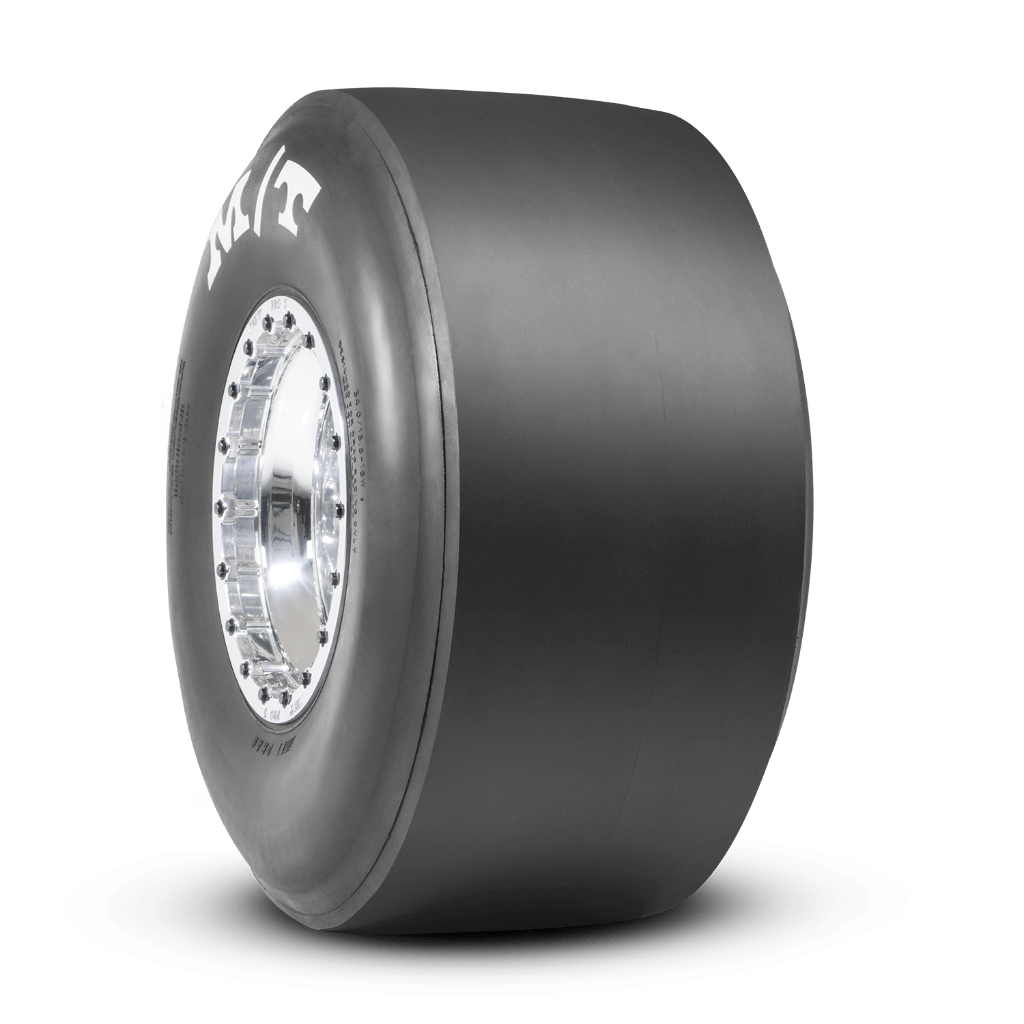

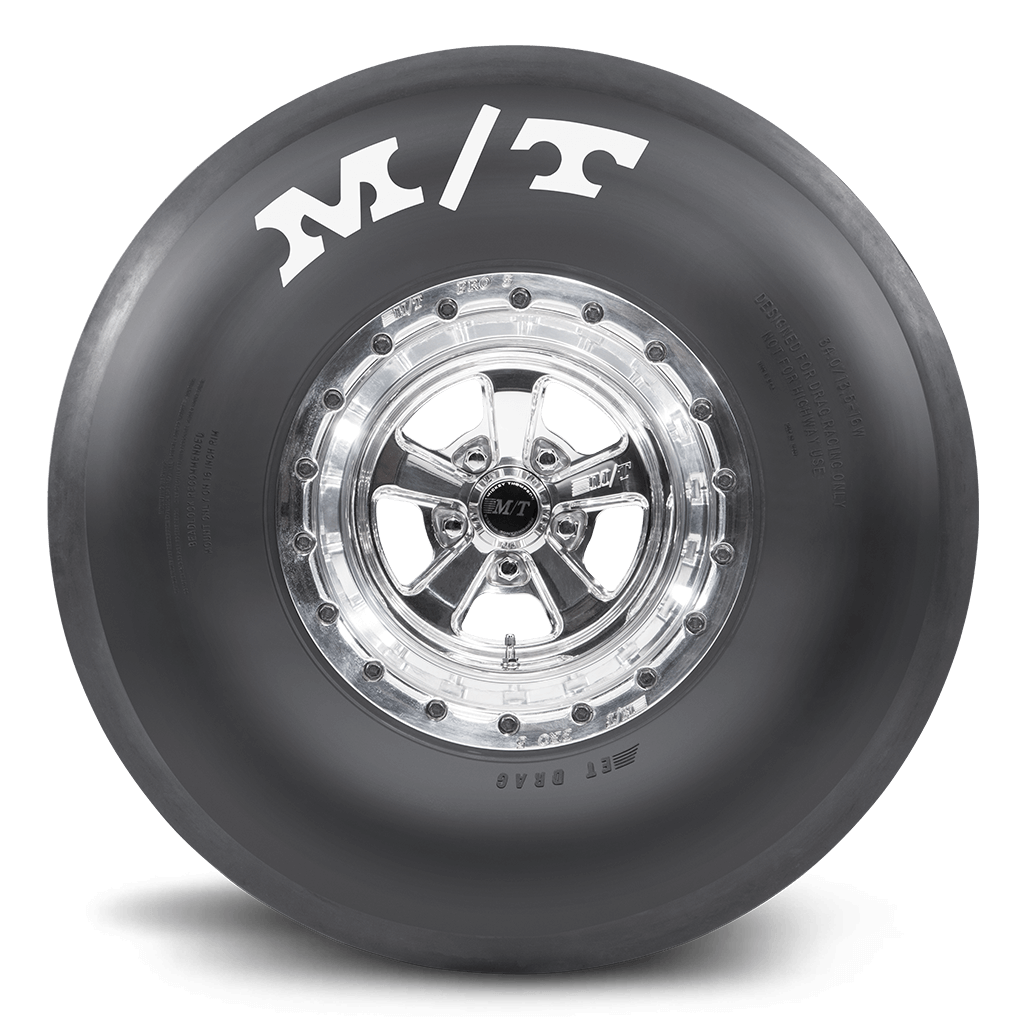

A PROVEN DRAG STRIP WINNER

A Proven Drag Strip Winner
Real world research and development give M/T® slicks the edge over competitive brands. Engineered for maximum traction and consistent ET’s with superior construction and compounding for nearly every drag race application.

  • Multiple Compounds and Sizes
  • Compounded For Maximum Traction
  • Requires Little or No Burnout
  • Engineered For Consistent Performance

SEE DRAG TIRE FOOTNOTES BELOW TABLE FOR IMPORTANT INFORMATION

Sizes

13 INCH

TIRE SIZE MEAS RIM WIDTH O.D. IN. SECT. WIDTH IN. TREAD WIDTH IN. CIRC. COMPOUND Suggested Tube APX. WT. LBS. MATL #. PART #
22.0/8.0-13 7 22.4 9.2 7.9 70 L8 - 14 90000000823 3010 Buy
24.5/8.0-13 7 24.5 10.5 7.7 77 L8 90000000289 16 90000000829 3014 Buy
24.5/9.0-13 7 24.5 10.9 8.8 77 X8 90000000289 16 90000028340 30161 Buy

14 INCH

TIRE SIZE MEAS RIM WIDTH O.D. IN. SECT. WIDTH IN. TREAD WIDTH IN. CIRC. COMPOUND Suggested Tube APX. WT. LBS. MATL #. PART #
26.0/8.5-14 8 26 10.2 8.2 82 L8 90000000289 18 90000000837 3020 Buy

15 INCH

TIRE SIZE MEAS RIM WIDTH O.D. IN. SECT. WIDTH IN. TREAD WIDTH IN. CIRC. COMPOUND Suggested Tube APX. WT. LBS. MATL #. PART #
22.0/8.0-15 7 22.4 8.6 7.9 70 L8 - 14 90000000836 3019 Buy
24.5/8.0-15 8 24.5 9.6 7.7 77 L8 90000000289 17 90000000831 3015 Buy
26.0/8.5-15 8 25.9 9.9 8.1 82 L8 90000000289 19 90000000842 3052 Buy
26.0/10.0-15 10 26 11.6 9.6 82 L8 90000000289 22 90000000843 3053 Buy
26.0/10.0-15S * 10 26.5 11.5 9.8 83 M5 90000000289 24 90000000846 3053S Buy
28.0/9.0-15 8 27.3 10.8 8.6 86 L8 90000000289 22 90000000847 3054 Buy
28.0/9.0-15 8 27.3 10.8 8.6 86 M5 90000000289 22 90000022010 3054ST Buy
28.0/10.5-15 10 28.1 12.5 10.0 88 M5 90000000289 23 90000000848 3055 Buy
28.0/10.5-15S * 10 28.1 12.5 10.0 88 M5 90000000289 24 90000000851 3055S Buy
28.0/10.5-15W 10 28.1 13.1 10.9 88 M5 90000000290 26 90000000852 3055W Buy
28.0/10.5-15W * 10 28.1 13.1 10.9 88 M5 90000000290 27 90000001551 30551 Buy
28.0/11.5-15 10 28 12.9 11.0 88 M5 90000000290 26 90000000856 3057 Buy
29.5/9.0-15 8 29.3 11.4 8.9 92 L8 90000000289 22 90000000853 3056 Buy
29.5/9.0-15ST 8 29.3 11.4 8.9 92 M5 90000000289 22 90000000855 3056ST Buy
29.5/10.5-15 10 29.9 13.1 10.2 94 M5 90000000290 25 90000000858 3062 Buy
29.5/10.5-15S * 10 29.9 13.2 10.2 94 M5 90000000290 27 90000000859 3062S Buy
29.5/10.5-15W * 10 29.6 13.6 11.2 93 M5 90000000290 30 90000000860 3062W Buy
29.5/11.5-15 10 29.9 13.6 11.1 94 M5 90000000290 27 90000000861 3064 Buy
29.5/13.5-15 12 30.2 16.0 13.1 95 M5 90000000290 29 90000000863 3065 Buy
30.0/9.0-15 10 30 12.5 8.8 94 L8 90000000290 22 90000000865 3066 Buy
31.0/10.5-15W 10 31.3 14.5 10.8 99 M5 90000000290 33 90000000869 3068W Buy
31.0/13.0-15 12 31 15.7 13.0 98 M5 90000000291 32 90000000871 3072 Buy
31.25/12.2-15W 12 31.5 15.8 13.2 99 M5 90000000291 32 90000022014 3073ST Buy
31.25/12.2-15W 12 31.5 15.8 13.2 99 L8 90000000291 29 90000000874 3073W Buy
32.0/14.0-15 14 31.8 17.2 14.2 100 L8 90000000291 33 90000000875 3074 Buy
32.0/14.0-15S * 14 32.2 17.1 14.2 100 L8 90000000291 35 90000000877 3074S Buy
32.0/14.0-15ST 14 32.2 17.1 14.2 100 M5 90000000291 36 90000000878 3074ST Buy
14.5/32.0-15 14 33 17.4 14.5 103 L8 90000000291 38 90000000880 30751 Buy
32.0/16.0-15S 15 32 18.5 15.8 101 M8 90000000291 42 90000000882 30761 Buy
32.0/16.0-15S 15 32 18.5 15.8 101 X8 90000000291 42 90000022013 30771 Buy
33.0/10.5-15W * 10 32.9 14.5 11.2 103 M5 90000000291 33 90000000870 3069W Buy
33.0/15.0-15S * 14 33.6 18.1 14.8 105 X8 90000000291 37 90000028341 3080 Buy
33.0/16.5-15S * 15 33.5 20.0 16.7 105 L8 90000000291 41 90000000888 3084S Buy

16 INCH

TIRE SIZE MEAS RIM WIDTH O.D. IN. SECT. WIDTH IN. TREAD WIDTH IN. CIRC. COMPOUND Suggested Tube APX. WT. LBS. MATL #. PART #
33.0/10.5-16W * 15 33 16.8 11.3 104 M5 90000000291 34 90000000893 3169W Buy
33.5/16.5-16 *† 16 33.7 20.8 16.5 106 X5 41 90000001573 3182 Buy
33.5/16.5-16 *† 16 33.7 20.8 16.5 106 X8 41 90000001574 3183 Buy
34.0/13.5-16W 16 34.5 18.3 14.0 109 X8 39 90000021546 3191W Buy
34.0/13.5-16W * 16 34.5 18.3 14.0 109 X5 39 90000001562 3190W Buy
34.5/17.0-16 16 35.0 21.0 17.0 110 L5 - 45 90000030256 3189 Buy
34.5/17.0-16 16 35 21.0 17.0 110 M5 45 90000000895 3186 Buy
35.0/15.0-16 16 35.2 18.6 14.5 111 L5 - 40 90000028752 3196 Buy
35.0/15.0-16 16 35.2 18.6 14.5 111 X5 41 90000001930 3195 Buy

Quality + Construction

TREAD

Multiple Compounds
Consistent Performance

SIDEWALL

Little/No Burnout
Superior Construction

*Stiff Sidewall
† High Growth Tire

ACCEPTABLE PRACTICE (EXCEPT ET STREET R, ET STREET R BIAS AND ET STREET S/S) FOR RIM WIDTH IS TREAD WIDTH PLUS OR MINUS ONE INCH.

WARNING: DO NOT USE ON DYNO.

IMPORTANT: ALL BIAS DRAG DRIVE TIRES MUST BE MATCHED TO BE WITHIN 1/2 INCH ROLL OUT.

NEVER USE RIM SCREWS ON RADIAL DRAG TIRES!

MICKEY THOMPSON COMPOUND SELECTION CHART

MEDIUM SOFT
M7 X5 M5 L5 R2 R1 X8 L8 X7 L7 L4 L2
To identify the compound of your current M/T® ET Drag tires look at the serial number on the sidewall of the tire.
EXAMPLE: CY1J M5 FJ2616

CONSTRUCTION

ST ...... Suggested for manual transmissions (medium compound)
W ...... Extra tread width (please note actual tread and section width on spec sheet)
S ...... Stiff sidewall construction aids in quicker reaction time due to less tire distortion. Also good in high horsepower applications and for heavy cars (Over 3,000 lbs)
C ...... Sport Compact
R ...... Radial Construction

COMPOUNDS

B2 ......For Motorcycles
L4 ...... FWD Vehicles
L7 ...... For Motorcycles
L8 ...... Good Compound for General Use
L2 ...... For Jr. Dragsters
M5 ...... Good Compound for General Use
M7 ...... Good Compound for High Horsepower Applications With Clutch
M8 ...... Aggressive Compound for Index Racing, Works Well in All Ambient and Track Conditions
X5 ...... Cooler running version of M5
X7 ...... Cooler running version of L7
X8 ...... Cooler running version of L8
R1 ...... Special Compound for ET Drag Radial
R2 ...... Special Compound for ET Street S/S, ET Street R & ET Street Radial Pro
