Wheel Caps
If you have a broken, lost, or damaged center cap Mickey Thompson has your replacement here. Find your size below to order online!
Sizes

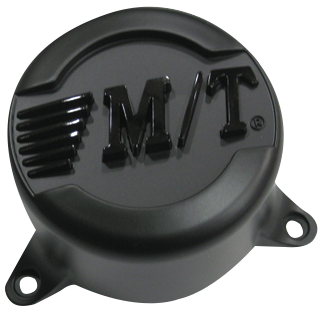

CLASSIC BAJA LOCK BLACK CAP
| MATL #. | Part # | Cap Assembly | Bolt Circle | Outer Diameter(in) | Length(in) | |
|---|---|---|---|---|---|---|
| 90000019995 | 1119995 | BOLT ON CLOSED | 5 X 4.5/5.0 | 3.11 | 3.1 | Buy |
| 90000019996 | 1119996 | BOLT ON CLOSED | 5 X 5.5 | 4.409 | 3.1 | Buy |
| 90000019997 | 1119997 | BOLT ON CLOSED | 6 X 5.5 | 4.37 | 4.4 | Buy |
| 90000019998 | 1119998 | BOLT ON CLOSED | 8 X 6.5 | 6.811 | 6.8 | Buy |
| 90000019999 | 1119999 | BOLT ON CLOSED | 8 X 170 | 6.811 | 6.8 | Buy |
| 90000020020 | 11120020 | BOLT ON CLOSED | 6 X 135 | 4.134 | 2.8 | Buy |

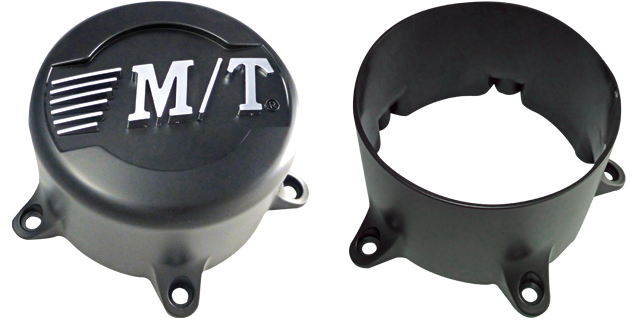

CLASSIC III BLACK CAP
| MATL #. | Part # | Cap Assembly | Bolt Circle | Outer Diameter(in) | Length(in) | |
|---|---|---|---|---|---|---|
| 90000001587 | 111587 | BOLT ON CLOSED | 5 X 4.5/5.0 | 3.346 | 3.3 | Buy |
| 90000001588 | 111588 | BOLT ON CLOSED | 5 X 5.5 | 4.409 | 3.1 | Buy |
| 90000001589 | 111589 | BOLT ON CLOSED | 6 X 5.5 | 4.37 | 2.9 | Buy |
| 90000001662 | 111662 | BOLT ON OPEN | 5 X 5.5 | 4.409 | 2.8 | Buy |
| 90000001663 | 111663 | BOLT ON OPEN | 6 X 5.5 | 4.37 | 3.5 | Buy |
| 90000001664 | 111644 | BOLT ON OPEN | 8 X 6.5/170 | 5.315 | 3.1 | Buy |
| 90000001680 | 111680 | BOLT ON CLOSED | 8 X 6.5 | 5.315 | 2.6 | Buy |
| 90000001681 | 111681 | BOLT ON CLOSED | 8 X 6.5 | 5.315 | 4.5 | Buy |

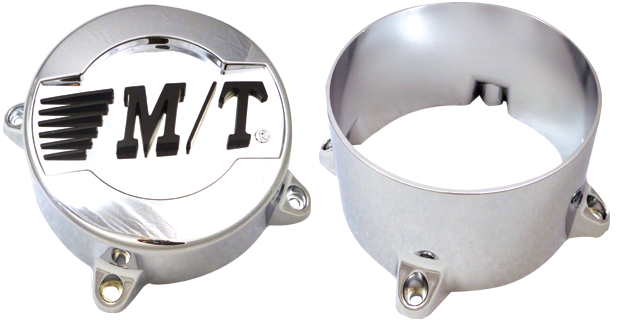

CLASSIC III CAP
| MATL #. | Part # | Cap Assembly | Bolt Circle | Outer Diameter(in) | Length(in) | |
|---|---|---|---|---|---|---|
| 90000001635 | 111635 | BOLT ON CLOSED | 5 X 4.5/5.0 | 3.346 | 3.1 | Buy |
| 90000001670 | 111670 | BOLT ON CLOSED | 5 X 5.5 | 4.409 | 3.1 | Buy |
| 90000001673 | 111673 | BOLT ON CLOSED | 6 X 5.5 | 4.37 | 2.9 | Buy |
| 90000001674 | 111674 | BOLT ON CLOSED | 8 X 6.5 | 5.315 | 2.6 | Buy |
| 90000001675 | 111675 | BOLT ON OPEN | 5 X 5.5 | 4.409 | 2.8 | Buy |
| 90000001676 | 111676 | BOLT ON CLOSED | 8 X 170 | 5.315 | 4.5 | Buy |
| 90000001677 | 111677 | BOLT ON OPEN | 6 X 5.5 | 4.37 | 3.5 | Buy |
| 90000001678 | 111678 | BOLT ON OPEN | 8 X 6.5/170 | 5.315 | 3.1 | Buy |
| 90000001679 | 111679 | BOLT ON CLOSED | 6 X 135 | 4.134 | 2.8 | Buy |

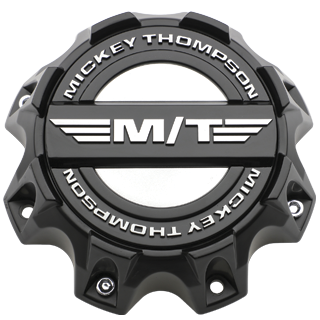

SD-5 BLACK CAP
| MATL #. | Part # | Cap Assembly | Bolt Circle | Outer Diameter(in) | Length(in) | |
|---|---|---|---|---|---|---|
| 90000031901 | 1113835 | BOLT ON CLOSED | 5X4.50 / 5.00 | 4.5 | 4.9 | Buy |
| 90000031902 | 1113935 | BOLT ON CLOSED | 5X150 | 5.875 | 5.9 | Buy |
| 90000031903 | 1113968 | BOLT ON CLOSED | 8X6.5 / 170 / 180 | 6.5 | 6.5 | Buy |
| 90000031904 | 1113969 | BOLT ON CLOSED | 8X6.5 / 170 / 180 | 6.5 | 6.5 | Buy |

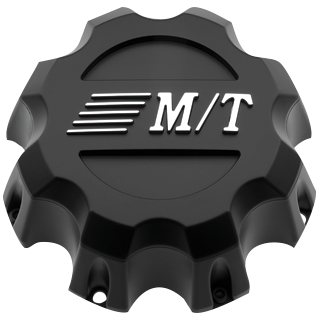

SIDEBITER II CAP
| MATL #. | Part # | Cap Assembly | Bolt Circle | Outer Diameter(in) | Length(in) | |
|---|---|---|---|---|---|---|
| 90000019862 | 1119862 | BOLT ON CLOSED | 5X5.50 | 5.3 | 5.3 | Buy |
| 90000019863 | 1119863 | BOLT ON CLOSED | 6X5.50/135 | 5.3 | 5.3 | Buy |
| 90000019864 | 1119864 | BOLT ON CLOSED | 8X6.50 | 6.5 | 6.5 | Buy |
| 90000019865 | 1119865 | BOLT ON CLOSED | 8X170 | 6.5 | 6.5 | Buy |
| 90000019900 | 1119900 | BOLT ON CLOSED | 5X4.50/5.00 | 4.3 | 4.3 | Buy |
| 90000030414 | 1130414 | BOLT ON CLOSED | 6X5.50/135 | Buy |
IMPORTANT WHEEL FITMENT NOTES
All Mickey Thompson Classic Series, SideBiter®, and M/T Metal Series wheels require (60-Degree) Bulge Acorn (Cone Bulge) Seat Lug Nuts. Mickey Thompson recommends Duplex Bulge Acorn Lug Nuts on vehicles of GVWR of 6,500 lbs. or greater.
All Deegan 38 Series wheels use 60 Degree Conical Bulge Seat lugs but will also accept E/T Style lug nuts which provide a lug-centric installation.
For All 6x5.5 Bolt Circle Wheels: Hub Centering Ring included for late Model Chevrolet/GMC applications.
Center caps are not available for certain applications including 1997 & earlier Ford 3/4 & 1-ton pickups, 2002 & earlier Dodge/Ram 3/4 & 1-ton pickups, 1986 & earlier Jeep, CJ models & earlier Toyota Land Cruiser models.

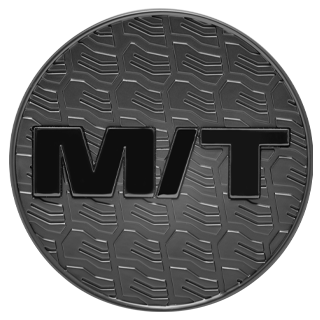

Open caps are available for 5, 6 and 8 lug Classic Series wheels, separately.
NOTE: All dual drill wheels in the MT METAL line are cover-style caps—no exposed lugs.
