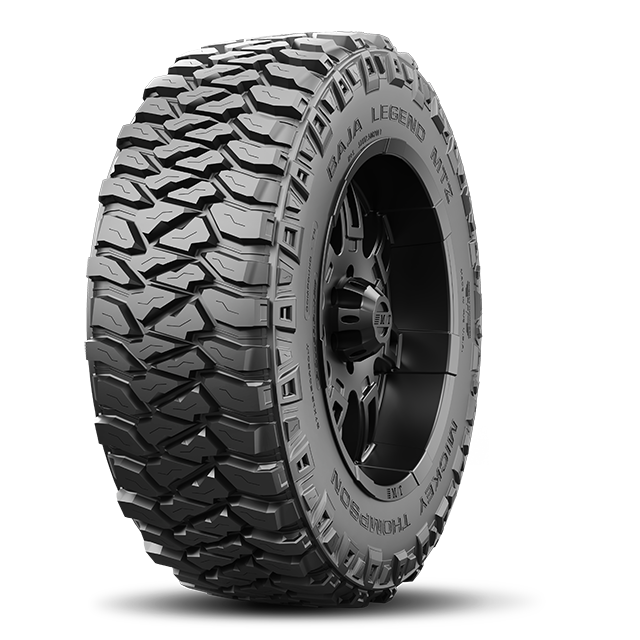

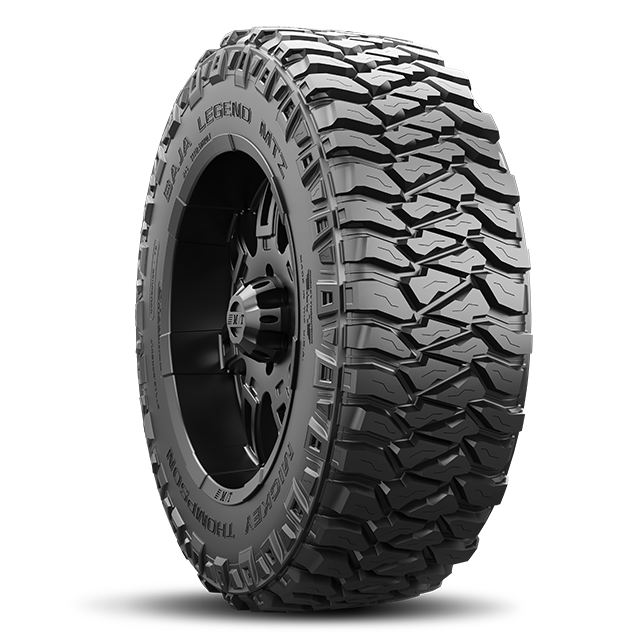

BAJA LEGEND™ MTZ

The Baja Legend™ MTZ features an innovative design to deliver versatile mud terrain performance, providing excellent traction both on and off-road. Mickey Thompson’s legendary Sidebiter® design elements and Powerply™ 3-Ply sidewall construction provide off-road performance, quick steering response, and stability while its T4 silica-reinforced compound fortifies on-road tread wear, wet performance, and treadwear durability.

  • PowerPly 3-Ply construction provides increased puncture resistance and more responsive handling

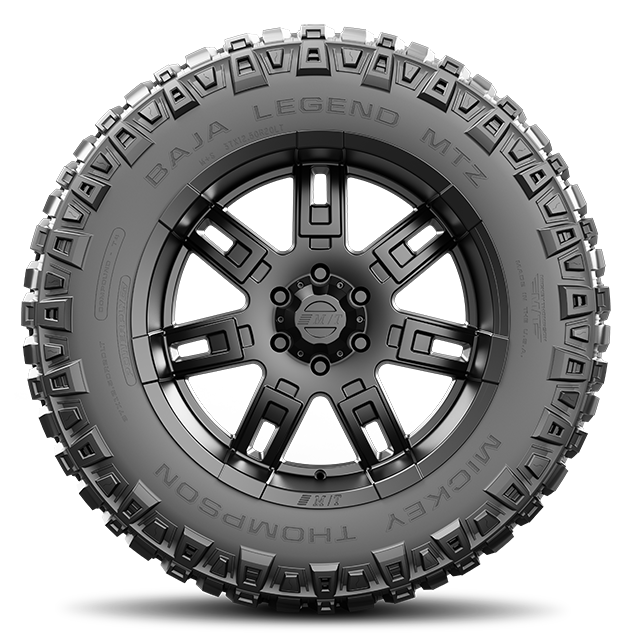

  • Variable length and depth four-pitch Sidebiters ® provide off-road traction and grip
  • T4 Silica-Reinforced Compound provides excellent wet handling/braking performance, cut & chip resistance
    and lasting treadwear

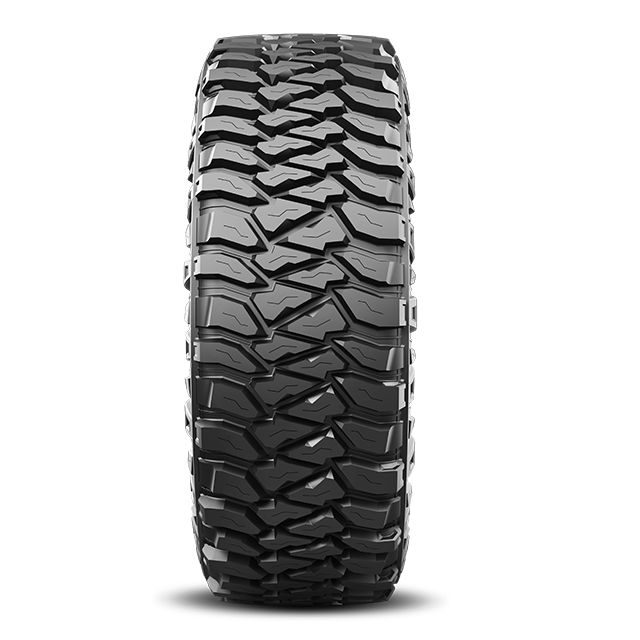

  • Bold & proven MTZ tread styling for an aggressive appearance and great on/off-road performance
  • Optimized tread design and geometry help to reduce noise


powerply
  • Sizes

Sizes

15 INCH

TIRE SIZE /
EQUIV. SIZE		 LOAD
RANGE		 SIDEWALL SERVICE
DESC		 MEAS RIM
APPROVED RIMS		 MAX LOAD
MAX INFL		 O.D. IN. SECT. WIDTH IN. TREAD WIDTH IN. TREAD DEPTH 32NDS APX. WT. LBS. MATL #. PART # PRODUCT CODE CROSS REF#
31X10.50R15LT
 C RWL 109Q 8.5
7.0-9.0		 2,270 lbs @
50 psi.		 30.8 10.7 8.5 20.0 47 247441 54510 331119011 90000056178 Buy
33X10.50R15LT
 C RWL 114Q 8.5
7.0-9.0		 2,600 lbs @
50 psi.		 32.8 11.2 8.6 20.0 53 249405 54530 331186011 90000056179 Buy
33X12.50R15LT
 C RWL 108Q 10.0
8.0-11.0		 2,205 lbs @
35 psi.		 32.7 12.2 9.8 21.0 60 247908 54532 331124011 90000057340 Buy
35X12.50R15LT
 C RWL 113Q 10.0
8.0-11.0		 2,535 lbs @
35 psi.		 34.6 13.1 10.1 21.0 67 247931 54552 331137011 90000057341 Buy

16 INCH

TIRE SIZE /
EQUIV. SIZE		 LOAD
RANGE		 SIDEWALL SERVICE
DESC		 MEAS RIM
APPROVED RIMS		 MAX LOAD
MAX INFL		 O.D. IN. SECT. WIDTH IN. TREAD WIDTH IN. TREAD DEPTH 32NDS APX. WT. LBS. MATL #. PART # PRODUCT CODE CROSS REF#
LT265/75R16
32X10.50R16LT		 E RWL 123Q 7.5
7.0-9.0		 3,415 lbs @
80 psi.		 31.9 10.7 8.4 18.5 54 247904 54620 331120011 90000057342 Buy
LT285/75R16
33X11.50R16LT		 E RWL 126Q 8.0
7.5-9.5		 3,750 lbs @
80 psi.		 33 11.2 8.8 19.0 60 247909 54631 331125011 90000057343 Buy
LT305/70R16
33X12.50R16LT		 E RWL 124Q 9.0
8.0-10.0		 3,525 lbs @
65 psi.		 33 12.3 9.9 19.5 61 247910 54632 331126011 90000057344 Buy
LT315/75R16
35X12.50R16LT		 E RWL 127Q 8.5
8.0-11.0		 3,860 lbs @
65 psi.		 34.5 12.6 9.7 20.5 68 247929 54652 331135011 90000057345 Buy

17 INCH

TIRE SIZE /
EQUIV. SIZE		 LOAD
RANGE		 SIDEWALL SERVICE
DESC		 MEAS RIM
APPROVED RIMS		 MAX LOAD
MAX INFL		 O.D. IN. SECT. WIDTH IN. TREAD WIDTH IN. TREAD DEPTH 32NDS APX. WT. LBS. MATL #. PART # PRODUCT CODE CROSS REF#
LT265/70R17
32X10.50R17LT		 E RWL 121Q 8.0
7.0-9.0		 3,195 lbs @
80 psi.		 31.9 10.7 8.5 18.5 54 247905 54720 331121011 90000057346 Buy
LT285/70R17
33X11.50R17LT		 E RWL 121Q 8.5
7.5-9.5		 3,195 lbs @
80 psi.		 33 11.5 9.0 19.0 62 247921 54731 331127011 90000057347 Buy
LT305/65R17
33X12.50R17LT		 E BLK 121Q 9.0
8.5-11.0		 3,195 lbs @
65 psi.		 32.7 12.3 9.9 21.0 64 247907 54732 331123005 90000057348 Buy
LT295/70R17
34X12.00R17LT		 E RWL 121Q 8.5
7.5-10.0		 3,195 lbs @
80 psi.		 33.5 12.0 9.7 21.0 65 247924 54742 331130011 90000057349 Buy
35X12.50R17LT
 D BLK 119Q 10.0
8.0-11.0		 3,000 lbs @
50 psi.		 34.8 12.5 10.0 21.0 65 247933 54759 331141005 90000057350 Buy
LT315/70R17
35X12.50R17LT		 E RWL 121Q 9.5
8.0-11.0		 3,195 lbs @
65 psi.		 34.6 12.6 10.0 21.0 66 247930 54752 331136011 90000057351 Buy
37X12.50R17LT
 D BLK 124Q 10.0
8.0-11.0		 3,525 lbs @
50 psi.		 36.8 13.0 10.2 22.0 80 247939 54772 331147005 90000057352 Buy
37X13.50R17LT
 D BLK 121Q 11.0
8.5-11.5		 3,195 lbs @
50 psi.		 36.8 13.3 11.0 22.0 81 247940 54773 331148005 90000057353 Buy
40X13.50R17LT
 C BLK 121Q 11.0
8.5-11.5		 3,195 lbs @
35 psi.		 39.8 13.6 11.0 22.0 91 247959 54703 331152005 90000057354 Buy

18 INCH

TIRE SIZE /
EQUIV. SIZE		 LOAD
RANGE		 SIDEWALL SERVICE
DESC		 MEAS RIM
APPROVED RIMS		 MAX LOAD
MAX INFL		 O.D. IN. SECT. WIDTH IN. TREAD WIDTH IN. TREAD DEPTH 32NDS APX. WT. LBS. MATL #. PART # PRODUCT CODE CROSS REF#
LT275/70R18
33X11.00R18LT		 E RWL 125P 8.0
7.0-9.0		 3,640 lbs @
80 psi.		 33.3 11.3 9.1 20.0 62 247923 54831 331129011 90000057355 Buy
LT305/60R18
33X12.50R18LT		 F RWL 126Q 9.0
8.5-11.0		 3,750 lbs @
80 psi.		 32.7 12.0 10.1 21.0 66 247906 54832 331122011 90000057356 Buy
LT295/70R18
34X12.00R18LT		 E RWL 129P 8.5
7.5-10.0		 4,080 lbs @
80 psi.		 34.5 12.0 9.7 21.0 69 247928 54842 331134011 90000057357 Buy
35X12.50R18LT
 D BLK 118Q 10.0
8.5-11.0		 2,910 lbs @
50 psi.		 34.8 12.5 10.1 21.0 70 247934 54859 331142005 90000057358 Buy
LT305/70R18
35X12.50R18LT		 E RWL 126Q 9.0
8.0-10.0		 3,750 lbs @
65 psi.		 35.1 12.4 9.9 21.0 70 247935 54852 331143011 90000057359 Buy
37X13.50R18LT
 D BLK 124Q 11.0
8.5-11.5		 3,525 lbs @
50 psi.		 36.8 13.3 11.0 22.0 82 247941 54873 331149005 90000057360 Buy

20 INCH

TIRE SIZE /
EQUIV. SIZE		 LOAD
RANGE		 SIDEWALL SERVICE
DESC		 MEAS RIM
APPROVED RIMS		 MAX LOAD
MAX INFL		 O.D. IN. SECT. WIDTH IN. TREAD WIDTH IN. TREAD DEPTH 32NDS APX. WT. LBS. MATL #. PART # PRODUCT CODE CROSS REF#
LT295/55R20
33X12.00R20LT		 E BLK 123Q 9.5
8.0-10.5		 3,415 lbs @
80 psi.		 33.1 12.3 10.2 20.0 64 247922 54038 331128005 90000057361 Buy
33X12.50R20LT
 E BLK 114Q 10.0
8.5-11.0		 2,600 lbs @
65 psi.		 32.8 12.5 10.3 21.0 65 249356 54039 331010005 90000057362 Buy
LT305/55R20
33X12.50R20LT		 F BLK 125Q 9.5
8.5-11.0		 3,640 lbs @
80 psi.		 33.5 12.2 10.4 20.5 68 247925 54032 331131005 90000057363 Buy
LT275/65R20
34X11.00R20LT		 E BLK 126Q 8.0
7.5-9.5		 3,750 lbs @
80 psi.		 34.5 10.9 9.1 19.5 63 247927 54041 331133005 90000057364 Buy
LT295/60R20
34X12.00R20LT		 E BLK 126Q 8.5
8.0-10.5		 3,750 lbs @
80 psi.		 34.3 11.5 9.7 19.5 66 247926 54042 331132005 90000057365 Buy
LT295/65R20
35X12.00R20LT		 E BLK 129Q 8.5
8.0-10.5		 4,080 lbs @
80 psi.		 35.4 11.7 9.7 19.5 69 247936 54058 331144005 90000057366 Buy
35X12.50R20LT
 F BLK 125Q 10.0
8.5-11.0		 3,640 lbs @
80 psi.		 34.7 12.4 10.2 21.0 70 247932 54059 331140005 90000057367 Buy
36X15.50R20LT
 E BLK 126Q 12.5
11.0-14.0		 3,750 lbs @
65 psi.		 36.4 15.4 12.3 21.0 90 247937 54065 331145005 90000057368 Buy
37X12.50R20LT
 E BLK 126Q 10.0
8.5-11.0		 3,750 lbs @
65 psi.		 36.7 12.6 10.3 21.0 77 247938 54072 331146005 90000057369 Buy
37X13.50R20LT
 E BLK 127Q 11.0
8.5-12.0		 3,860 lbs @
65 psi.		 36.9 13.3 10.8 21.0 82 247942 54073 331150005 90000057370 Buy
38X15.50R20LT
 E BLK 128Q 12.5
11.0-14.0		 3,970 lbs @
65 psi.		 37.8 15.4 12.3 21.0 94 247958 54085 331151005 90000057371 Buy
40X14.50R20LT
 D BLK 128Q 11.5
10.0-13.0		 3,970 lbs @
50 psi.		 39.8 14.4 11.6 22.0 94 247960 54004 331153005 90000057372 Buy

Note: All specifications are for single rear tire applications.
