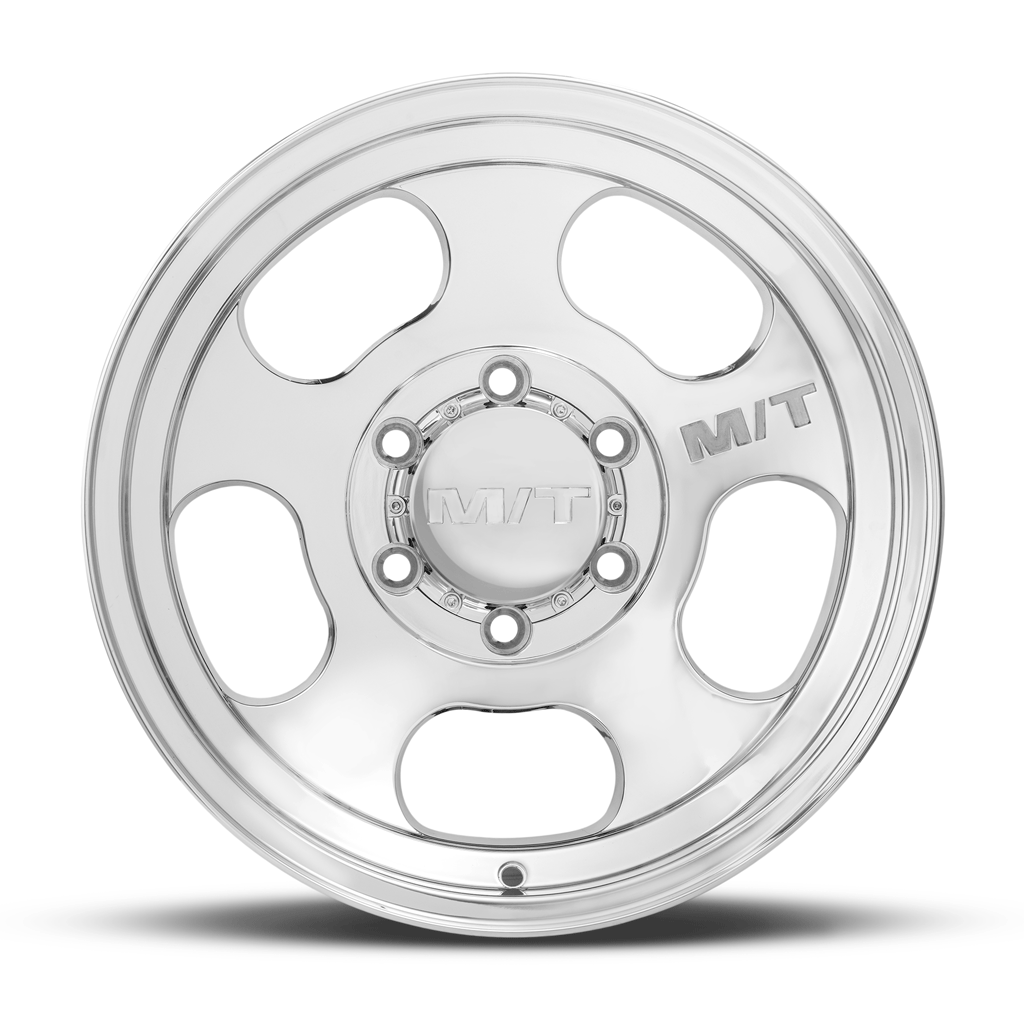

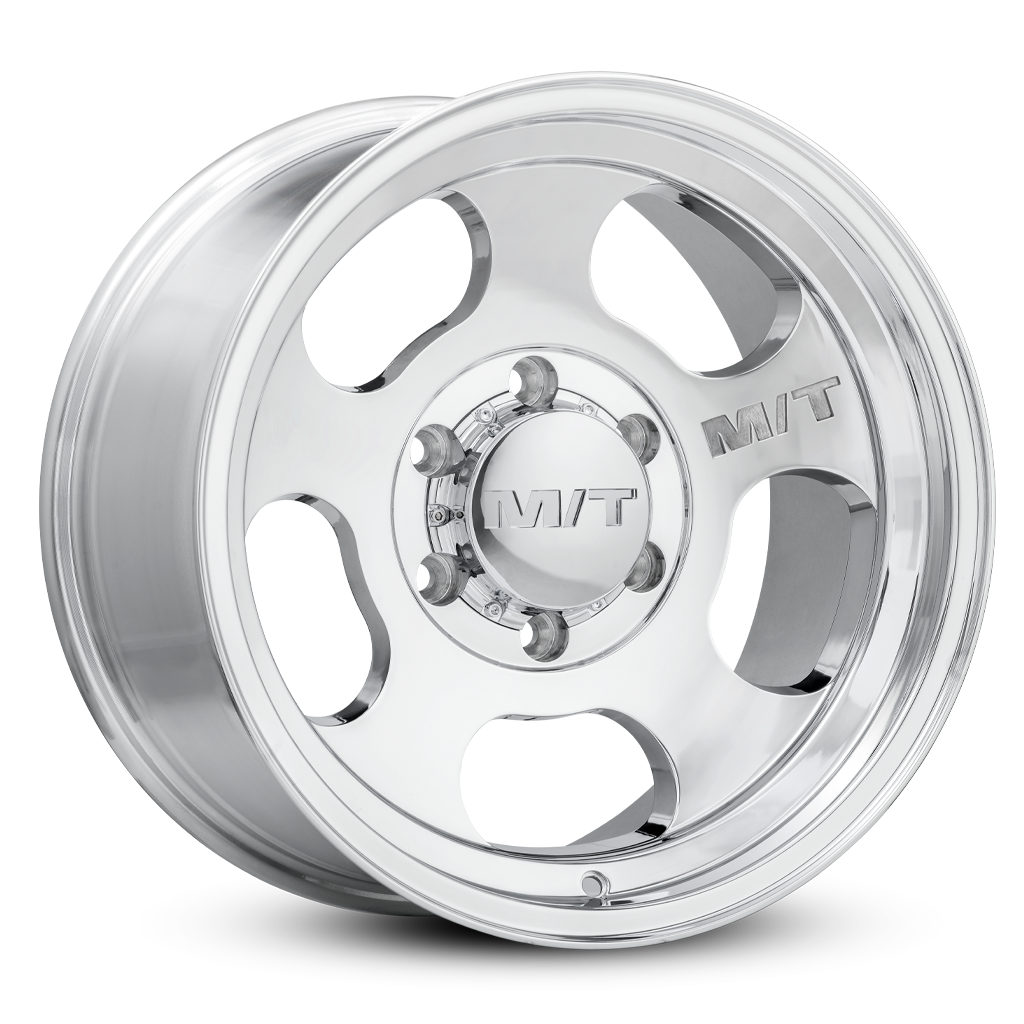

MT Canyon Polished

MT Classic Series

The MT Canyon combines vintage Medallion-inspired design with modern engineering in a new truck and SUV wheel. A 2-step lip updates the classic 5-hole slot for a tough, aggressive look. Available in a Polished finish.

  • A reimagined 1960’s Mickey Thompson wheel style for today’s modern rigs
  • Classic step lip design
  • Fitments for classic and modern trucks & SUVs
  • 15", 16", and 17" diameter options with unique widths for optimal stance enhancement


  • Sizes

Sizes

15 INCH

SIZE BOLT CIR. BACK SPACE IN. OFFSET MM HUB BORE MM. MAX. LOAD LB. APP. WT. LB. REPL. CAP* MATL #. PART # PRODUCT CODE CROSS REF#
15X10
5X4.5 3.7 -45 78.11 2,500 17 274578 274519 274519 226100404 226100404 Buy
15X10
5X5.5 3.7 -45 108.10 2,500 17 274580 274520 274520 226100405 226100405 Buy
15X10
6X5.5 3.7 -45 108.10 2,500 17 274603 274621 274621 226100406 226100406 Buy
15X12
5X4.5 3.6 -73 78.11 2,500 21 274578 274622 274622 226100407 226100407 Buy
15X12
5X5.5 3.6 -73 108.10 2,500 21 274580 274623 274623 226100408 226100408 Buy
15X12
6X5.5 3.6 -73 108.10 2,500 21 274603 274624 274624 226100409 226100409 Buy
15X8
5X4.5 3.6 -22 78.11 2,500 17 274578 274516 274516 226100401 226100401 Buy
15X8
5X5.5 3.6 -22 108.10 2,500 17 274580 274517 274517 226100402 226100402 Buy
15X8
6X5.5 3.6 -22 108.10 2,500 17 274603 274518 274518 226100403 226100403 Buy

16 INCH

SIZE BOLT CIR. BACK SPACE IN. OFFSET MM HUB BORE MM. MAX. LOAD LB. APP. WT. LB. REPL. CAP* MATL #. PART # PRODUCT CODE CROSS REF#
16X10
6X5.5 4.5 -25 108.10 2,500 20 274603 274629 274629 226100414 226100414 Buy
16X10
8X6.5 4.5 -25 125.20 3,500 22 274604 274630 274630 226100415 226100415 Buy
16X12
6X5.5 4.5 -50 108.10 2,500 22 274603 274631 274631 226100416 226100416 Buy
16X12
8X6.5 4.5 -50 125.20 3,500 23 274604 274632 274632 226100417 226100417 Buy
16X8
5X4.5 4.5 0 78.11 2,500 19 274578 274625 274625 226100410 226100410 Buy
16X8
5X5.5 4.0 -12 108.10 2,500 19 274580 274626 274626 226100411 226100411 Buy
16X8
6X5.5 4.5 0 108.10 2,500 19 274603 274627 274627 226100412 226100412 Buy
16X8
6X5.5 4.0 -12 108.10 2,500 19 274603 274628 274628 226100413 226100413 Buy

17 INCH

SIZE BOLT CIR. BACK SPACE IN. OFFSET MM HUB BORE MM. MAX. LOAD LB. APP. WT. LB. REPL. CAP* MATL #. PART # PRODUCT CODE CROSS REF#
17X9
5X5 4.5 -12 71.60 2,500 23 274579 274633 274633 226100418 226100418 Buy
17X9
5X5.5 4.5 -12 71.60 2,500 23 274580 274634 274634 226100419 226100419 Buy
17X9
6X120 4.8 -6 67.01 2,500 21 274601 274635 274635 226100420 226100420 Buy
17X9
6X135 4.5 -12 87.10 2,500 23 274602 274637 274637 226100422 226100422 Buy
17X9
6X5.5 5.0 0 108.10 2,500 21 274603 274638 274638 226100423 226100423 Buy
17X9
6X5.5 4.5 -12 108.10 2,500 23 274603 274639 274639 226100424 226100424 Buy
17X9
8X170 5.0 0 125.20 3,500 23 274604 274641 274641 226100426 226100426 Buy
17X9
8X6.5 5.0 -12 125.20 3,500 23 274604 274640 274640 226100425 226100425 Buy

IMPORTANT WHEEL FITMENT NOTES
All Mickey Thompson Classic Series, SideBiter®, and M/T Metal Series wheels require (60-Degree) Bulge Acorn (Cone Bulge) Seat Lug Nuts. Mickey Thompson recommends Duplex Bulge Acorn Lug Nuts on vehicles of GVWR of 6,500 lbs. or greater.

All Deegan 38 Series wheels use 60 Degree Conical Bulge Seat lugs but will also accept E/T Style lug nuts which provide a lug-centric installation.

Not suitable for use on 2022 to present Toyota Tundra models due to insufficient fastener thread engagement

For All 6x5.5 Bolt Circle Wheels: Hub Centering Ring included for late Model Chevrolet/GMC applications.

Center caps are not available for certain applications including 1997 & earlier Ford 3/4 & 1-ton pickups, 2002 & earlier Dodge/Ram 3/4 & 1-ton pickups, 1986 & earlier Jeep, CJ models & earlier Toyota Land Cruiser models.

Open caps are available for 5, 6 and 8 lug Classic Series wheels, separately.

NOTE: All dual drill wheels in the MT METAL line are cover-style caps—no exposed lugs.
