ET Drag® Pro Drag Radial

ET Drag® Pro Drag Radial

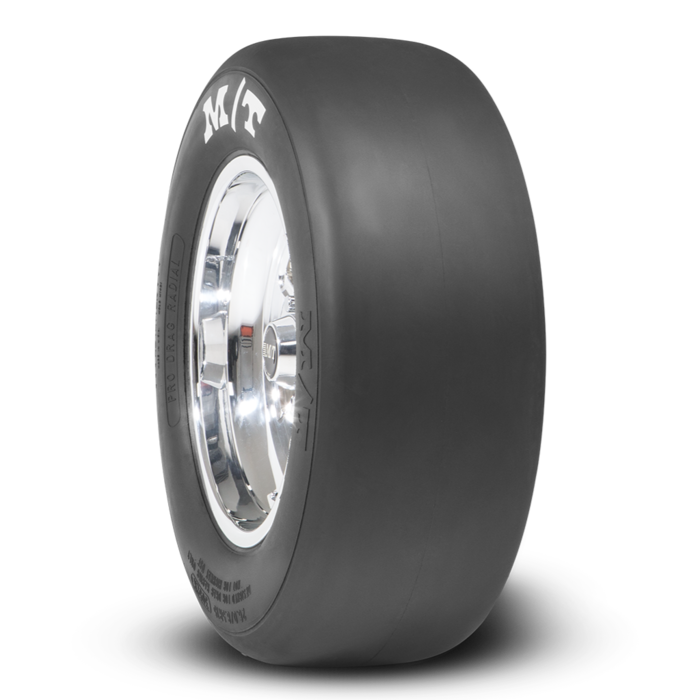

PRO DRAG RADIAL

M/T® Pro Drag Radials are the fastest Drag tires on the strip! The radial design allows for less rolling resistance for better ET’s. Radial slicks will give you the edge over the competition!

  • Radial construction for less rolling resistance
  • Zero growth for predictable gear ratios
  • Compounded for maximum traction
  • Works best with auto trans applications

Sizes

15 INCH

TIRE SIZE MEAS RIM WIDTH O.D. IN. SECT. WIDTH IN. TREAD WIDTH IN. CIRC. COMPOUND Suggested Tube APX. WT. LBS. MATL #. PART #
26.0/8.5R15 8.0 26.4 9.9 8.5 83 R1 TUBELESS 24 90000024091 3052R
29.5/10.5R15 10.0 30 12.7 10.2 94 R1 TUBELESS 31 90000024092 3062R
29.5/9.0R15 10.0 29.5 11.2 8.5 93 R1 TUBELESS 24 90000023502 3058R
30.0/9.0R15 10.0 29.7 12.5 9.0 93 R1 TUBELESS 23 90000038315 3060R
30.0/9.0R15 10.0 29.9 11.8 9.2 94 R1 TUBELESS 23 90000036690 3063R
32.0/14.0R15 14.0 32.5 17.4 14.0 102 R1 TUBELESS 32 90000040166 3076R

Quality + Construction

Intro

TREAD

Radial Construction
For Automatic Trans

SIDEWALL

Zero Growth
Less Resistance

*Stiff Sidewall
† High Growth Tire

ACCEPTABLE PRACTICE (EXCEPT ET STREET R, ET STREET R BIAS AND ET STREET S/S) FOR RIM WIDTH IS TREAD WIDTH PLUS OR MINUS ONE INCH.

WARNING: DO NOT USE ON DYNO.

IMPORTANT: ALL BIAS DRAG DRIVE TIRES MUST BE MATCHED TO BE WITHIN 1/2 INCH ROLL OUT.

NEVER USE RIM SCREWS ON RADIAL DRAG TIRES!

MICKEY THOMPSON COMPOUND SELECTION CHART

MEDIUM SOFT
X5 M5 L6 R2 R1 X8 L8 L7 L2
To identify the compound of your current M/T® ET Drag tires look at the serial number on the sidewall of the tire.
EXAMPLE: CY1J M5 FJ2620

CONSTRUCTION

ST ...... Suggested for manual transmissions (medium compound)
W ...... Extra tread width (please note actual tread and section width on spec sheet)
S ...... Stiff sidewall construction aids in quicker reaction time due to less tire distortion. Also good in high horsepower applications and for heavy cars (Over 3,000 lbs)
R ...... Radial Construction

COMPOUNDS

L2 ...... For Jr. Dragsters
L6 ...... Good for High Horsepower - Boosted Applications
L7 ...... For Motorcycles
L8 ...... Good Compound for General Use
M5 ...... Good Compound for General Use
R1 ...... Special Compound for ET Drag Radial
R2 ...... Special Compound for ET Street S/S, ET Street R & ET Street Radial Pro
X5 ...... Cooler running version of M5
X8 ...... Cooler running version of L8
