SIZES

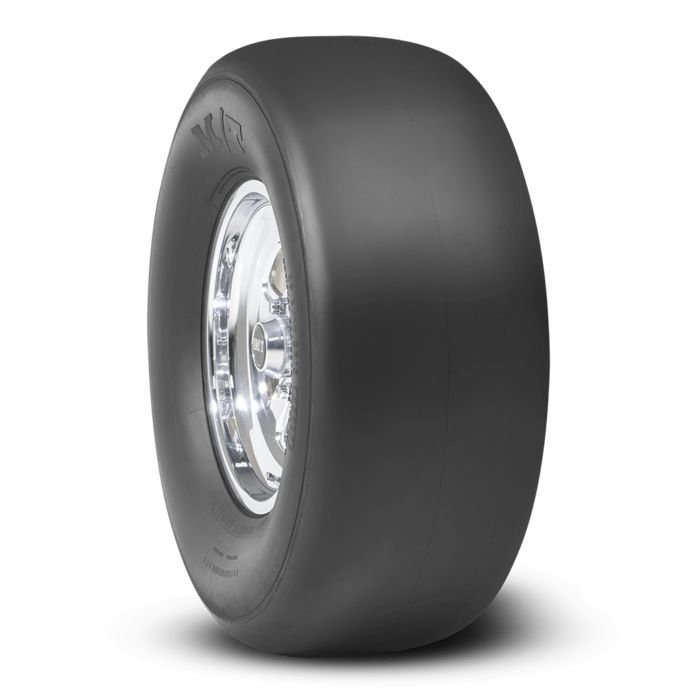

Pro Bracket Radial

Pro Bracket Radial

FASTER THAN BIAS COUNTERPARTS

Pro Bracket Radial from Mickey Thompson is a fast, consistent, reliable, affordable radial for the weekend Sportsman racer.

  • Low rolling resistance allowing them to be quicker and faster than the bias ply counterparts
  • The rollouts are always the same – no need to “match” tires
  • Consistent performance designed for bracket racing
  • No tubes required

Sizes

15 INCH

TIRE SIZE MEAS RIM WIDTH O.D. IN. SECT. WIDTH IN. TREAD WIDTH IN. CIRC. COMPOUND Suggested Tube APX. WT. LBS. MATL #. PART #
28.0/10.5R15 10.0 28 12.2 10.2 88.1 X5 TUBELESS 29 90000024498 3355R
28.0/9.0R15 8.0 28 10.7 9.0 87.8 X5 TUBELESS 26 90000024497 3354R
29.5/10.5R15 10.0 30 12.5 10.2 94.2 X5 TUBELESS 31 90000024499 3362R
31.0/13.5R15 14.0 31.9 16.3 13.5 100 X5 TUBELESS 41 90000026342 3373R
32.0/14.0R15 14.0 32.6 16.5 14.1 102 X5 TUBELESS 42 90000026341 3374R

17 INCH

TIRE SIZE MEAS RIM WIDTH O.D. IN. SECT. WIDTH IN. TREAD WIDTH IN. CIRC. COMPOUND Suggested Tube APX. WT. LBS. MATL #. PART #
26.0/10.0R17 10.0 26 10.9 10.0 82 X5 TUBELESS 27 90000059973 3317R
27.0/10.5R17 10.0 27 11.0 10.2 85 X5 TUBELESS 28 90000059939 3327R
28.0/10.5R17 10.0 28 11.7 10.3 88 X5 TUBELESS 30 90000059990 3337R
29.5/10.5R17 10.0 29.5 12.7 10.6 92.8 X5 TUBELESS 35 90000059991 3347R

18 INCH

TIRE SIZE MEAS RIM WIDTH O.D. IN. SECT. WIDTH IN. TREAD WIDTH IN. CIRC. COMPOUND Suggested Tube APX. WT. LBS. MATL #. PART #
29.0/10.5R18 10.0 28.9 11.9 10.5 91 X5 TUBELESS 32 90000059992 3348R

20 INCH

TIRE SIZE MEAS RIM WIDTH O.D. IN. SECT. WIDTH IN. TREAD WIDTH IN. CIRC. COMPOUND Suggested Tube APX. WT. LBS. MATL #. PART #
29.0/11.5R20 10.0 28.7 12.0 10.4 90.2 X5 TUBELESS 34 90000059993 3340R

Quality + Construction

Intro

TREAD

Consistent Performance
Low Resistance

SIDEWALL

Consistent Rollouts
Tubeless

*Stiff Sidewall
† High Growth Tire

ACCEPTABLE PRACTICE (EXCEPT ET STREET R, ET STREET R BIAS AND ET STREET S/S) FOR RIM WIDTH IS TREAD WIDTH PLUS OR MINUS ONE INCH.

WARNING: DO NOT USE ON DYNO.

IMPORTANT: ALL BIAS DRAG DRIVE TIRES MUST BE MATCHED TO BE WITHIN 1/2 INCH ROLL OUT.

NEVER USE RIM SCREWS ON RADIAL DRAG TIRES!

MICKEY THOMPSON COMPOUND SELECTION CHART

MEDIUM SOFT
X5 M5 L6 R2 R1 X8 L8 L7 L2
To identify the compound of your current M/T® ET Drag tires look at the serial number on the sidewall of the tire.
EXAMPLE: CY1J M5 FJ2620

CONSTRUCTION

ST ...... Suggested for manual transmissions (medium compound)
W ...... Extra tread width (please note actual tread and section width on spec sheet)
S ...... Stiff sidewall construction aids in quicker reaction time due to less tire distortion. Also good in high horsepower applications and for heavy cars (Over 3,000 lbs)
R ...... Radial Construction

COMPOUNDS

L2 ...... For Jr. Dragsters
L6 ...... Good for High Horsepower - Boosted Applications
L7 ...... For Motorcycles
L8 ...... Good Compound for General Use
M5 ...... Good Compound for General Use
R1 ...... Special Compound for ET Drag Radial
R2 ...... Special Compound for ET Street S/S, ET Street R & ET Street Radial Pro
X5 ...... Cooler running version of M5
X8 ...... Cooler running version of L8
