ET Street R® Bias
ET Street R® Bias
ET Street R® Bias

ET Street® R Bias

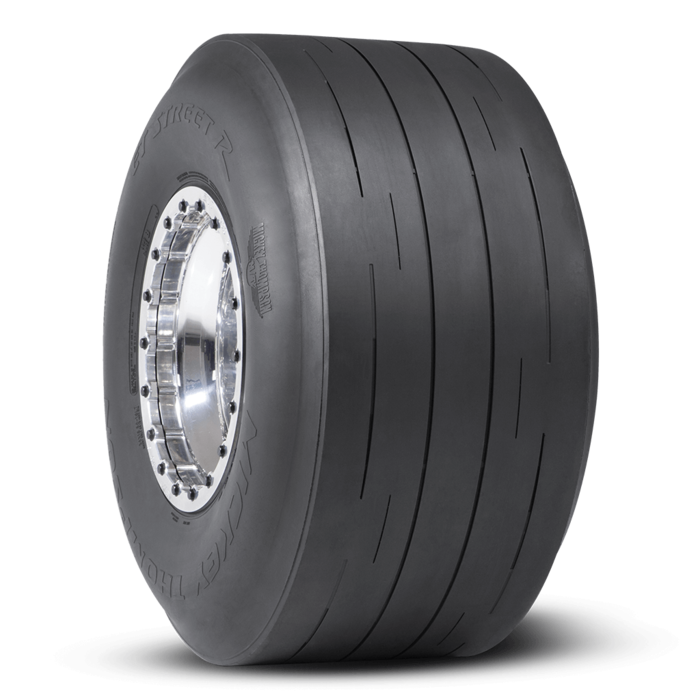

BIAS PLY STREET LEGAL DRAG TIRE

ET Street R bias ply from Mickey Thompson is a D.O.T street legal drag tire with proven race compounds and incredible traction.

  • D.O.T. approved for street use
  • Latest ET Drag technology to provide the ultimate traction for clutch applications
  • Minimal tread void for dry traction

SEE DRAG TIRE FOOTNOTES BELOW TABLE FOR IMPORTANT INFORMATION

Sizes

15 INCH

TIRE SIZE MEAS RIM WIDTH O.D. IN. SECT. WIDTH IN. TREAD WIDTH IN. CIRC. COMPOUND APX. WT. LBS. MATL #. PART #
28X11.50-15LT 8.0 28.2 11.1 8.8 88.6 M5 22 90000024643 3554
28X12.50-15LT 10.0 28 12.6 10.1 87.9 M5 24 90000031239 3561
31X16.50-15LT 12.0 31.9 16.0 13.4 100.2 M5 34 90000024645 3556
32X17.50-15LT 14.0 32.2 17.9 14.4 101.2 M5 35 90000024646 3557

17 INCH

TIRE SIZE MEAS RIM WIDTH O.D. IN. SECT. WIDTH IN. TREAD WIDTH IN. CIRC. COMPOUND APX. WT. LBS. MATL #. PART #
27X10.50-17LT 8.0 26.8 10.7 9.0 84 M5 27 90000040981 3579
28X11.50-17LT 9.0 28.5 11.1 9.5 89.5 M5 27 90000028490 3574

Quality + Construction

Intro

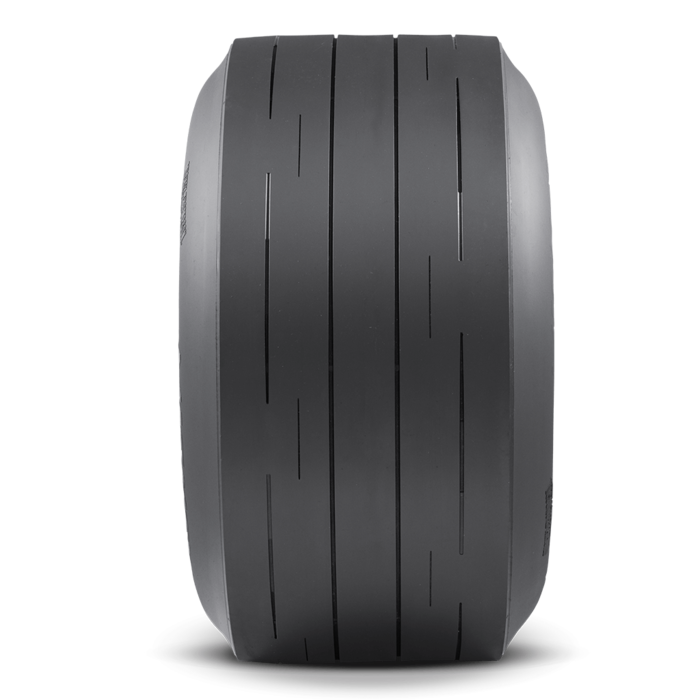

TREAD

Ultimate Traction CALL OUT
Race Compounds

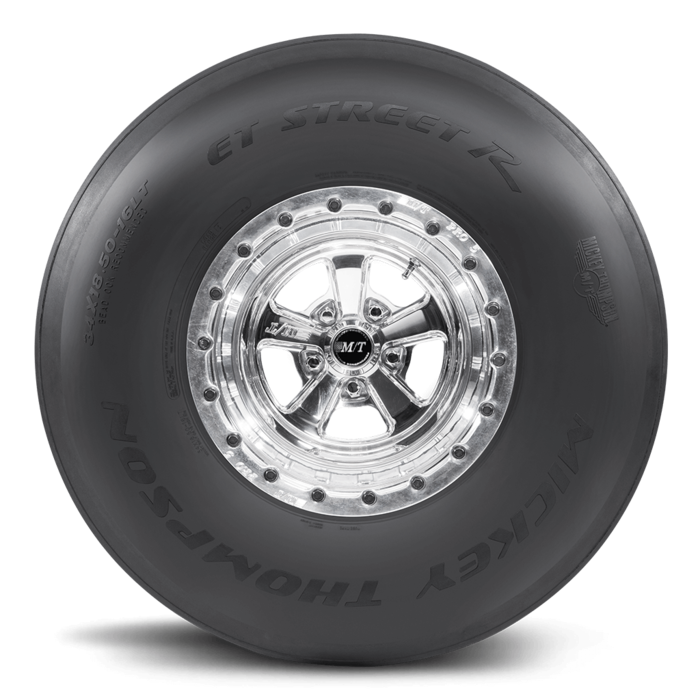

SIDEWALL

D.O.T Approved
Latest Technology

*Stiff Sidewall
† High Growth Tire

ACCEPTABLE PRACTICE (EXCEPT ET STREET R, ET STREET R BIAS AND ET STREET S/S) FOR RIM WIDTH IS TREAD WIDTH PLUS OR MINUS ONE INCH.

WARNING: DO NOT USE ON DYNO.

IMPORTANT: ALL BIAS DRAG DRIVE TIRES MUST BE MATCHED TO BE WITHIN 1/2 INCH ROLL OUT.

NEVER USE RIM SCREWS ON RADIAL DRAG TIRES!

MICKEY THOMPSON COMPOUND SELECTION CHART

MEDIUM SOFT
X5 M5 L6 R2 R1 X8 L8 L7 L2
To identify the compound of your current M/T® ET Drag tires look at the serial number on the sidewall of the tire.
EXAMPLE: CY1J M5 FJ2620

CONSTRUCTION

ST ...... Suggested for manual transmissions (medium compound)
W ...... Extra tread width (please note actual tread and section width on spec sheet)
S ...... Stiff sidewall construction aids in quicker reaction time due to less tire distortion. Also good in high horsepower applications and for heavy cars (Over 3,000 lbs)
R ...... Radial Construction

COMPOUNDS

L2 ...... For Jr. Dragsters
L6 ...... Good for High Horsepower - Boosted Applications
L7 ...... For Motorcycles
L8 ...... Good Compound for General Use
M5 ...... Good Compound for General Use
R1 ...... Special Compound for ET Drag Radial
R2 ...... Special Compound for ET Street S/S, ET Street R & ET Street Radial Pro
X5 ...... Cooler running version of M5
X8 ...... Cooler running version of L8
