SIZES
Classic Baja Lock™

Classic Baja Lock™

M/T CLASSIC SERIES

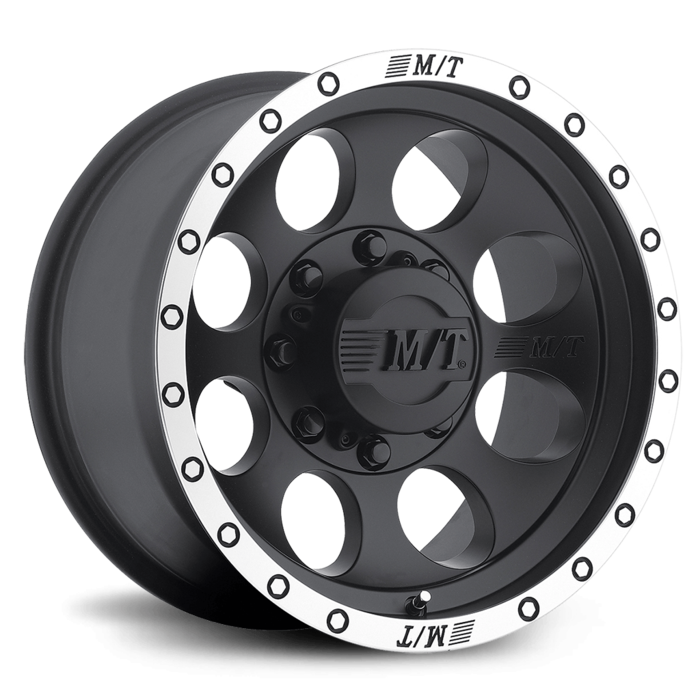

The Mickey Thompson Classic Baja Lock wheel features the classic 8-hole design in a matte black finish with a protective clear coat. The embossed M/T logo is assurance of quality, strength and dependability. The Classic Baja Lock is available in sizes 15x8 through 17x9

  • Simulated bead lock for an authentic look
  • High load rating for strength and durability
  • Non-corrosive black screw on center cap
  • Lifetime limited warranty against structural defects
  • 1-year finish warranty

We do not offer center caps for 1986 and earlier Jeeps
Wheels are not compatible with 1986 and earlier CJ models

classic series
lifetime limited warranty

Sizes

15 INCH

SIZE BOLT CIR. BACK SPACE IN. OFFSET MM HUB BORE MM. MAX. LOAD LB. APP. WT. LB. REPL. CAP* MATL #. PART #
15X10
 5X4.50 3.6 -45 2069.59 2000 23 248921 90000020048 1950421
15X10
 6X5.50 3.6 -45 2694.94 2600 22 250225 90000020070 1950412
15X8
 5X4.5 3.6 -22 2069.59 2000 21 248921 90000020045 1958421
15X8
 6X5.50 3.6 -22 2694.94 2000 20 250225 90000020047 1958412

16 INCH

SIZE BOLT CIR. BACK SPACE IN. OFFSET MM HUB BORE MM. MAX. LOAD LB. APP. WT. LB. REPL. CAP* MATL #. PART #
16X10
 6X5.50 4.5 -25 2694.94 2600 28 250225 90000020081 1960412
16X10
 8X6.50 4.5 -25 3180.08 3250 29 250273 90000020082 1960482
16X8
 6X5.50 4.5 0 2694.94 2600 24 250225 90000020077 1968412
16X8
 8X6.50 4.0 -12 3180.08 3250 27 250273 90000020079 1968482

17 INCH

SIZE BOLT CIR. BACK SPACE IN. OFFSET MM HUB BORE MM. MAX. LOAD LB. APP. WT. LB. REPL. CAP* MATL #. PART #
17X9
 5X5.00 4.5 -12 1983.23 2600 31 248921 90000020086 1979431
17X9
 5X5.50 4.5 -12 2704.59 2600 31 250210 90000020087 1979402
17X9
 6X5.50 4.5 -12 2694.94 2600 30 250225 90000020089 1979412
17X9
 8X6.50 5.0 0 3180.08 3250 29 250273 90000020090 1979482

IMPORTANT WHEEL FITMENT NOTES

All Mickey Thompson Classic Series, SideBiter®, and M/T Metal Series wheels require (60-Degree) Bulge Acorn (Cone Bulge) Seat Lug Nuts. Mickey Thompson recommends Duplex Bulge Acorn Lug Nuts on vehicles of GVWR of 6,500 lbs. or greater.

All Deegan 38 Series wheels use 60 Degree Conical Bulge Seat lugs but will also accept E/T Style lug nuts which provide a lug-centric installation.

For All 6x5.5 Bolt Circle Wheels: Hub Centering Ring included for late Model Chevrolet/GMC applications.

Center caps are not available for certain applications including 1997 & earlier Ford 3/4 & 1-ton pickups, 2002 & earlier Dodge/Ram 3/4 & 1-ton pickups, 1986 & earlier Jeep, CJ models & earlier Toyota Land Cruiser models.

Open caps are available for 5, 6 and 8 lug Classic Series wheels, separately.

NOTE: All dual drill wheels in the MT METAL line are cover-style caps—no exposed lugs.
