SIZES
Classic III™

Classic III™

M/T CLASSIC SERIES

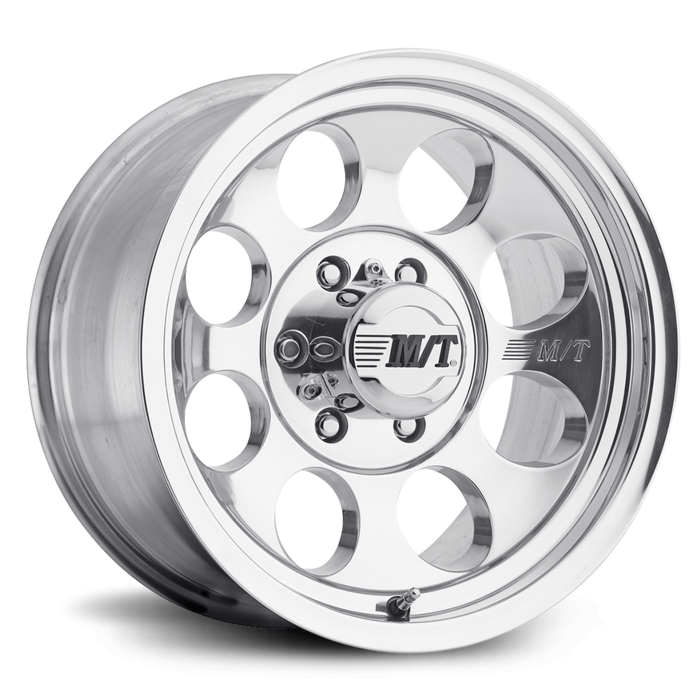

The Mickey Thompson Classic III wheel features the classic 8-Hole design in a highly polished finish that includes matching polished hand holes. The embossed M/T logo is assurance of quality, strength and dependability. The Classic III is available in sizes 15x8 through 17x9.

  • Redesigned smooth outer lip for clean appearance
  • Unique sizing includes 15x12 and 16x12
  • Non-corrosive screw on center cap
  • Lifetime Limited Warranty against structural defects

We do not offer center caps for 1986 and earlier Jeeps
Wheels are not compatible with 1986 and earlier CJ models

classic series

Sizes

15 INCH

SIZE BOLT CIR. BACK SPACE IN. OFFSET MM HUB BORE MM. MAX. LOAD LB. APP. WT. LB. REPL. CAP* MATL #. PART #
15X10
 5X4.50 3.6 -45 2069.59 1900 22 250367 90000001761 2350421
15X10
 5X5.50 3.6 -45 2705.10 2500 21 250368 90000001762 2350402
15X10
 6X5.50 3.6 -45 2694.94 2500 22 250369 90000001763 2350412
15X12
 5X5.50 3.6 -73 2705.10 2500 24 250368 90000001764 2352402
15X12
 6X5.50 3.6 -73 2694.94 2500 24 250369 90000001767 2352412
15X8
 5X4.50 3.6 -22 2069.59 1900 19 250367 90000001718 2358421
15X8
 5X5.50 3.6 -22 2705.10 1900 18 250368 90000001719 2358402
15X8
 6X5.50 3.6 -22 2694.94 1900 18 250369 90000001760 2358412

16 INCH

SIZE BOLT CIR. BACK SPACE IN. OFFSET MM HUB BORE MM. MAX. LOAD LB. APP. WT. LB. REPL. CAP* MATL #. PART #
16X10
 6X5.50 4.5 -25 2694.94 2500 26 250369 90000001776 2360412
16X10
 8X170 4.5 -25 3180.08 3500 27 250372 90000001778 2360170
16X10
 8X6.50 4.0 -25 3180.08 3250 27 250370 90000001777 2360482
16X12
 8X170 4.5 -50 3180.08 3500 30 250372 90000001780 2362170
16X12
 8X6.50 4.5 -50 3180.08 3250 29 250370 90000001779 2362482
16X8
 5X4.50 4.5 0 2069.59 1900 23 250367 90000001770 2368421
16X8
 5X5.50 4.5 0 2705.10 2500 23 250368 90000001771 2368402
16X8
 6X5.50 4.5 0 2694.94 2500 23 250369 90000001772 2368412
16X8
 6X5.50 3.6 -22 2694.94 2500 25 250369 90000001773 2368413
16X8
 8X170 4.0 -12 3180.08 3500 25 250372 90000001775 2368170
16X8
 8X6.50 4.0 -12 3180.08 3250 25 250370 90000001774 2368482

17 INCH

SIZE BOLT CIR. BACK SPACE IN. OFFSET MM HUB BORE MM. MAX. LOAD LB. APP. WT. LB. REPL. CAP* MATL #. PART #
17X9
 5X5.00 4.5 -12 1983.23 2500 30 250367 90000001781 2379431
17X9
 5X5.50 4.5 -12 2705.10 2500 29 250368 90000001782 2379402
17X9
 6X5.50 4.5 -12 2694.94 2500 29 250369 90000001784 2379412
17X9
 8X170 5.0 0 3180.08 3500 27 250372 90000001786 2379170
17X9
 8X6.50 5.0 0 3180.08 3250 27 250370 90000001785 2379482

IMPORTANT WHEEL FITMENT NOTES

All Mickey Thompson Classic Series, SideBiter®, and M/T Metal Series wheels require (60-Degree) Bulge Acorn (Cone Bulge) Seat Lug Nuts. Mickey Thompson recommends Duplex Bulge Acorn Lug Nuts on vehicles of GVWR of 6,500 lbs. or greater.

All Deegan 38 Series wheels use 60 Degree Conical Bulge Seat lugs but will also accept E/T Style lug nuts which provide a lug-centric installation.

For All 6x5.5 Bolt Circle Wheels: Hub Centering Ring included for late Model Chevrolet/GMC applications.

Center caps are not available for certain applications including 1997 & earlier Ford 3/4 & 1-ton pickups, 2002 & earlier Dodge/Ram 3/4 & 1-ton pickups, 1986 & earlier Jeep, CJ models & earlier Toyota Land Cruiser models.

Open caps are available for 5, 6 and 8 lug Classic Series wheels, separately.

NOTE: All dual drill wheels in the MT METAL line are cover-style caps—no exposed lugs.
