SIZES
Sportsman S/R™
Sportsman S/R™
Sportsman S/R™
Sportsman S/R™
Sportsman S/R™

Sportsman S/R™

Ultimate Street Rod Tire

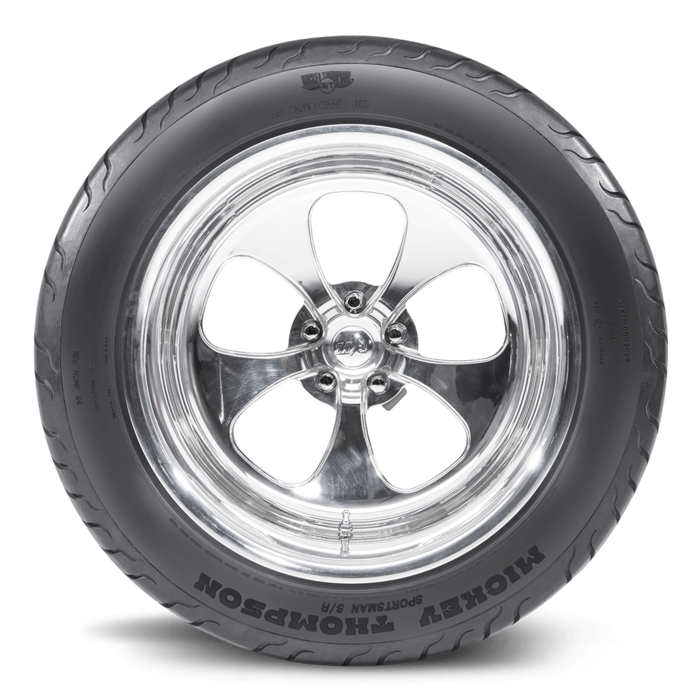

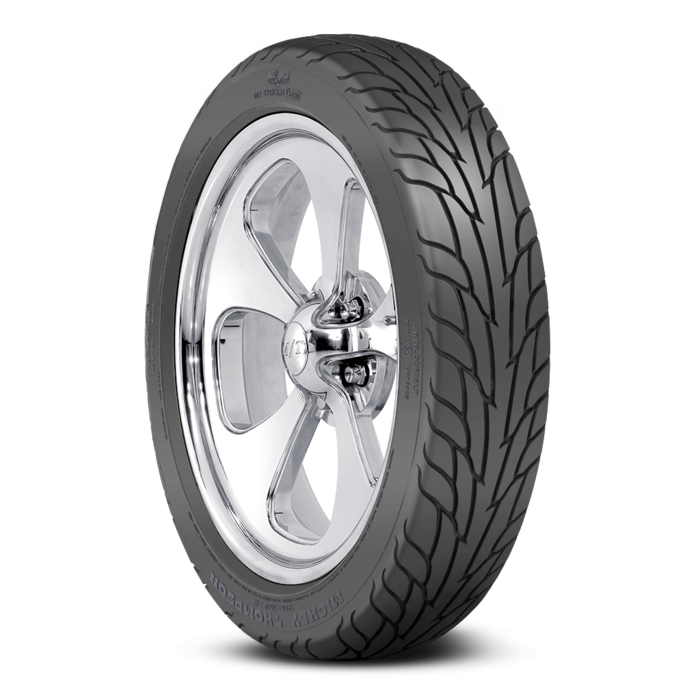

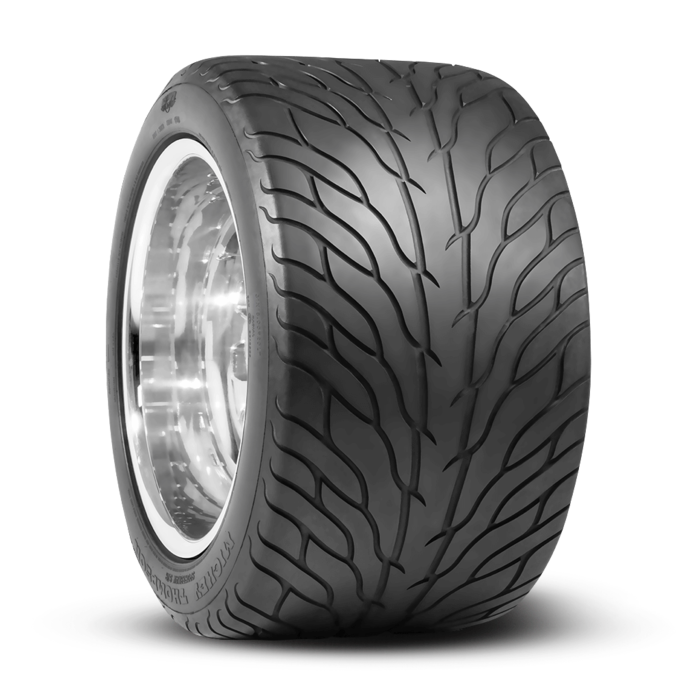

The Mickey Thompson Sportsman S/R is the Undisputed Classic Hot Rod tire. The Sportsman S/R radial is built in our unique “Flamed” tread pattern. The extra wide rears with matching skinny fronts makes for the best combination available.

  • Radial construction provides higher mileage and a smooth ride

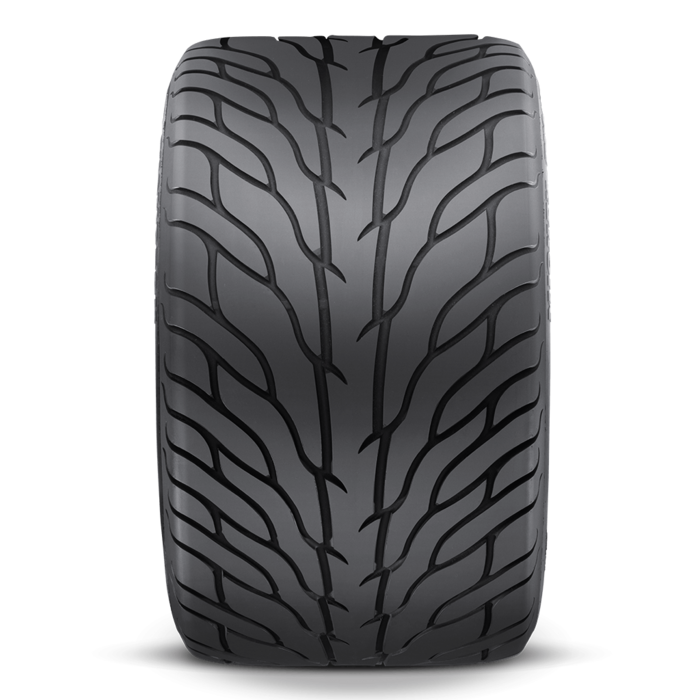

  • Unique “Flamed” tread pattern provides improved wet traction

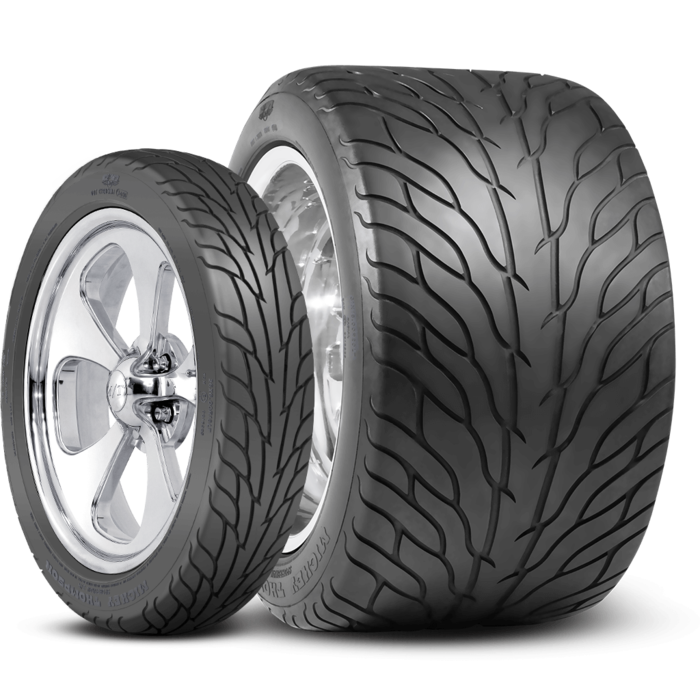

  • Matching front and rear tread pattern for staggered fitments
  • Custom sizes for street rods and muscle cars
  • Available for 15-, 17-, 18-, and 20-inch wheel diameters

Sizes

15 INCH

TIRE SIZE SERVICE
DESC		 MEAS RIM
APPROVED RIMS		 MAX LOAD
MAX INFL		 O.D. IN. SECT. WIDTH IN. TREAD WIDTH IN. TREAD DEPTH 32NDS APX. WT. LBS. MATL #. PART #
24X5.00R15LT 76H
 4.0
3.5-4.5		 900 lbs @
50 psi.		 24 5.8 4.5 8.0 15 90000000229 6651
26X6.00R15LT 80H
 4.0
3.5-5.0		 990 lbs @
35 psi.		 26 6.5 5.7 8.0 20 90000000230 6652
26X8.00R15LT 80H
 6.0
5.0-7.0		 1000 lbs @
35 psi.		 26.1 8.5 7.0 8.0 21 90000000228 6650
27X6.00R15LT
5.0
3.0-5.0		 990 lbs @
35 psi.		 27 6.4 5.4 8.0 19 90000034900 6658
28X6.00R15LT
4.5
3.5-5.0		 1040 lbs @
35 psi.		 28 6.9 4.8 8.0 21 90000020407 6678
28X10.00R15LT 90H
 8.0
7.0-8.5		 1335 lbs @
35 psi.		 28 10.3 8.7 8.0 27 90000000223 6640
28X12.00R15LT 93H
 10.0
8.5-10.0		 1435 lbs @
35 psi.		 28 12.1 10.4 8.0 31 90000000224 6641
29X15.00R15LT 98H
 12.0
10.0-13.0		 1325 lbs @
25 psi.		 29 15.0 13.0 8.0 42 90000000225 6642
29X18.00R15LT 94H
 14.0
14.0-16.0		 1500 lbs @
25 psi.		 29 17.3 15.8 8.0 49 90000000233 6655
30X12.00R15LT 99H
 10.0
8.5-10.0		 1740 lbs @
35 psi.		 30 12.6 10.2 8.0 36 90000000226 6643
31X16.00R15LT 105H
 12.0
12.0-14.0		 2080 lbs @
35 psi.		 31 16.0 13.9 8.0 47 90000000227 6644
31X18.00R15LT 99H
 14.0
14.0-16.0		 1720 lbs @
25 psi.		 31 17.9 15.7 8.0 50 90000000234 6656
33X22.00R15LT 107H
 15.0
15.0-18.0		 2200 lbs @
25 psi.		 32 20.0 17.8 8.0 59 90000000235 6657

17 INCH

TIRE SIZE SERVICE
DESC		 MEAS RIM
APPROVED RIMS		 MAX LOAD
MAX INFL		 O.D. IN. SECT. WIDTH IN. TREAD WIDTH IN. TREAD DEPTH 32NDS APX. WT. LBS. MATL #. PART #
26X6.00R17LT 0
 4.5
4.0-5.0		 1025 lbs @
50 psi.		 26.1 6.3 5.7 8.0 18 90000020379 6677
27X6.00R17LT
4.5
4.0-5.0		 1100 lbs @
50 psi.		 27 6.2 5.4 8.0 21 90000034902 6673
28X6.00R17LT
4.5
4.0-5.0		 1175 lbs @
50 psi.		 28 6.6 5.7 8.0 25 90000020408 6679

18 INCH

TIRE SIZE SERVICE
DESC		 MEAS RIM
APPROVED RIMS		 MAX LOAD
MAX INFL		 O.D. IN. SECT. WIDTH IN. TREAD WIDTH IN. TREAD DEPTH 32NDS APX. WT. LBS. MATL #. PART #
26X6.00R18LT 79H
 5.0
4.5-5.5		 980 lbs @
50 psi.		 26 6.3 5.7 8.0 18 90000000241 6682
28X6.00R18LT
4.5
4.0-5.0		 1650 lbs @
95 psi.		 28 6.6 5.7 8.0 25 90000032430 6688

20 INCH

TIRE SIZE SERVICE
DESC		 MEAS RIM
APPROVED RIMS		 MAX LOAD
MAX INFL		 O.D. IN. SECT. WIDTH IN. TREAD WIDTH IN. TREAD DEPTH 32NDS APX. WT. LBS. MATL #. PART #
29X15.00R20LT 93H
 14.0
13.0-14.0		 1460 lbs @
50 psi.		 29 14.7 13.0 8.0 41 90000000218 6620
29X18.00R20LT 80H
 16.0
15.0-16.0		 1000 lbs @
35 psi.		 29 17.2 15.5 8.0 46 90000000220 6625
31X18.00R20LT 94H
 16.0
15.0-16.0		 1500 lbs @
25 psi.		 31.1 17.3 15.7 8.0 50 90000000221 6626
33X22.00R20LT 97H
 17.0
16.0-18.0		 1650 lbs @
25 psi.		 32 18.9 17.8 8.0 58 90000000222 6627

Quality + Construction

Intro

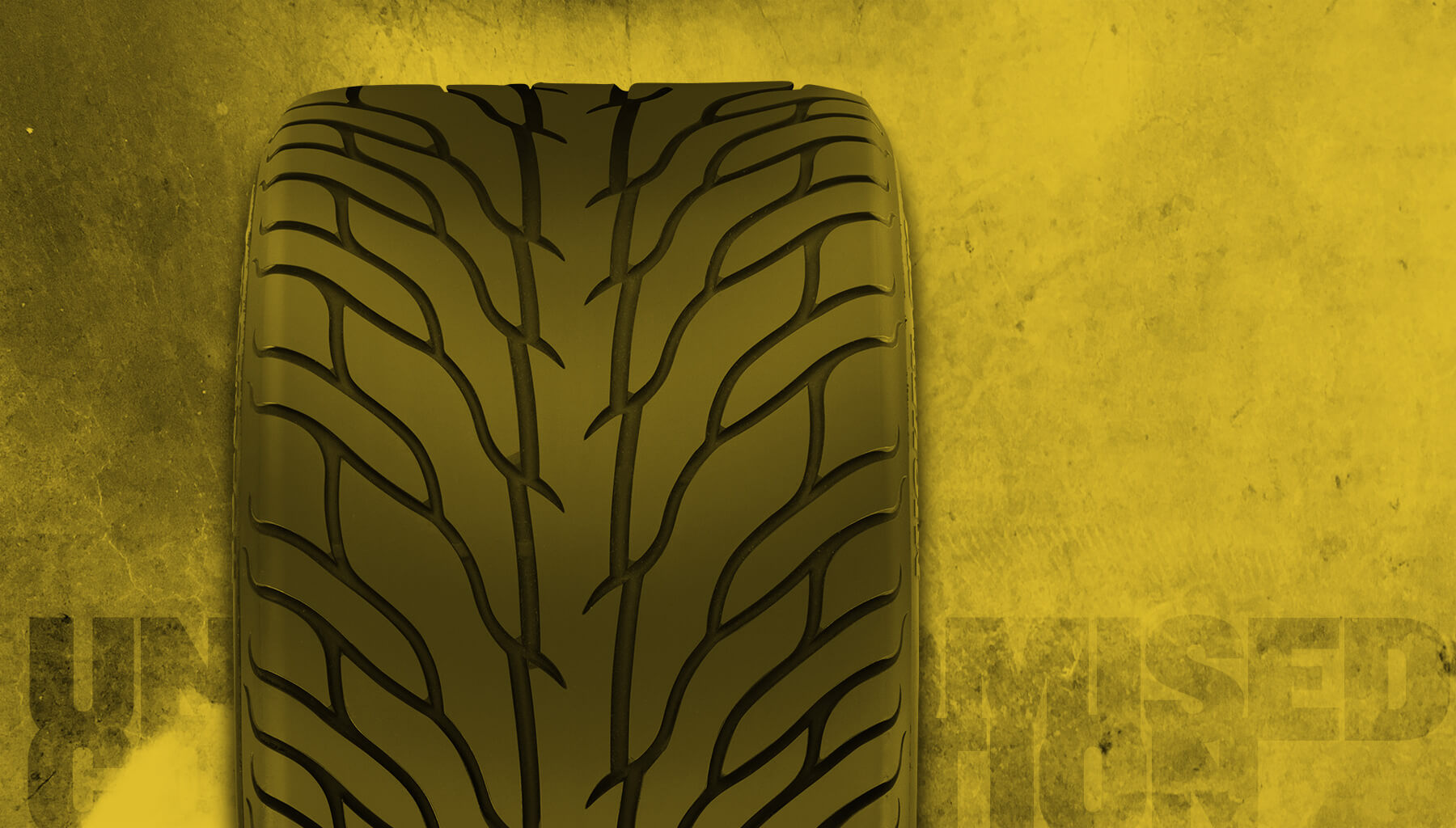

TREAD

Flamed Design
Extra Wide Design

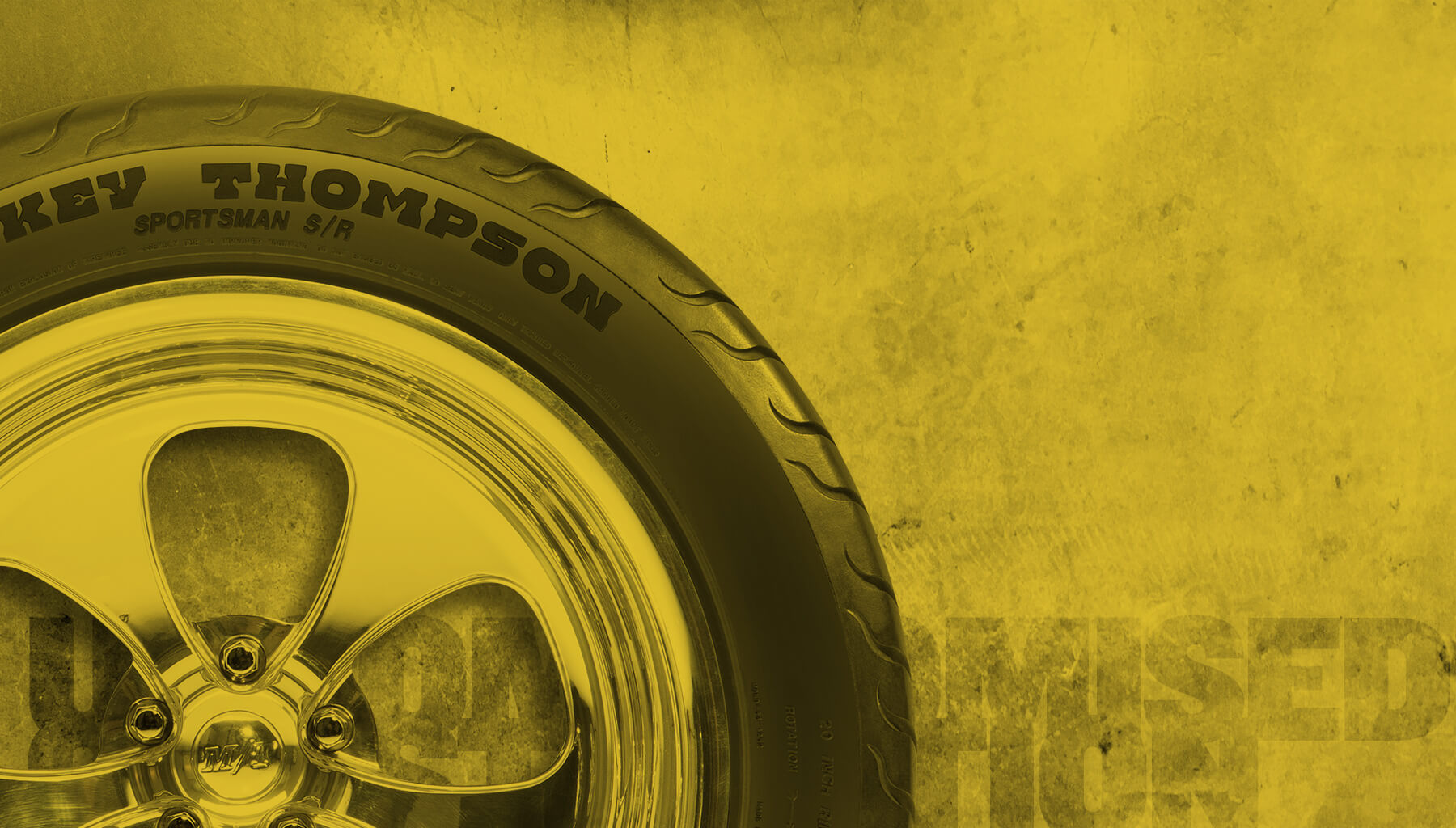

SIDEWALL

Low Profile
Radial Construction

Note: All specifications are for single rear tire applications.
