SIZES
Sidebiter® II

Sidebiter® II

M/T CLASSIC SERIES

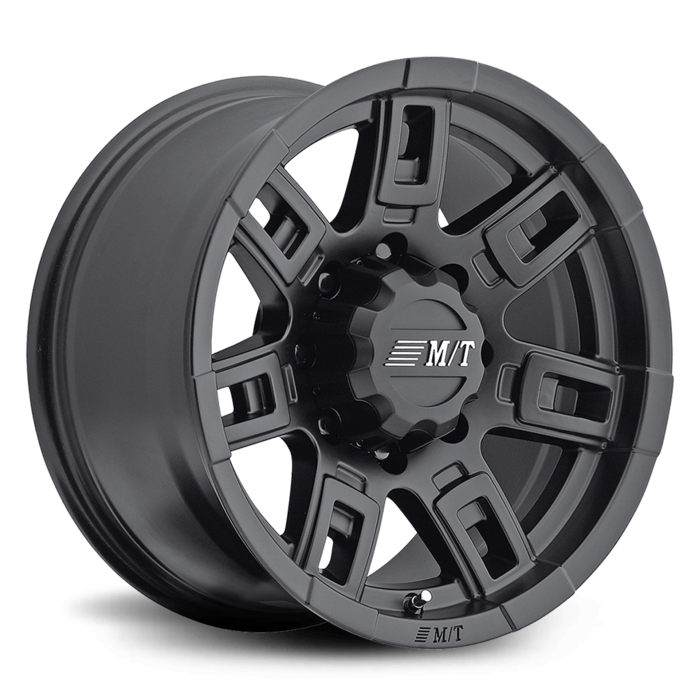

The Mickey Thompson Sidebiter II is styled after the revolutionary “tread-on-the-sidewall” Mickey Thompson Sidebiter tire design. The 7-spoke design is a heavy duty performer with a black satin finish. The Sidebiter II is available in a complete range of sizes from 15x8 through 22x12.

  • All new center cap provides easy access to locking hubs
  • High load rating for strength and durability
  • Non-corrosive black plastic screw on center cap
  • Lifetime limited warranty against structural defects
  • 1-year finish warranty


classic series
lifetime limited warranty

Sizes

15 INCH

SIZE BOLT CIR. BACK SPACE IN. OFFSET MM HUB BORE MM. MAX. LOAD LB. APP. WT. LB. REPL. CAP* MATL #. PART #
15X10
 5X4.50 3.6 -48 2070.35 2000 28 250398 90000019383 3050421
15X8
 5X4.50 3.6 -22 2070.35 2000 23 250398 90000019380 3058421

16 INCH

SIZE BOLT CIR. BACK SPACE IN. OFFSET MM HUB BORE MM. MAX. LOAD LB. APP. WT. LB. REPL. CAP* MATL #. PART #
16X8
 6X5.50 4.5 0 2694.94 2600 26 250395 90000019386 3068412
16X8
 8X6.50 4.5 0 3180.08 3640 28 250396 90000019387 3068482

17 INCH

SIZE BOLT CIR. BACK SPACE IN. OFFSET MM HUB BORE MM. MAX. LOAD LB. APP. WT. LB. REPL. CAP* MATL #. PART #
17X9
 5X5.00 4.5 -12 1983.99 2600 33 250398 90000019389 3079431
17X9
 6X5.50 5.0 0 2694.94 2600 31 250395 90000019402 3079412

22 INCH

SIZE BOLT CIR. BACK SPACE IN. OFFSET MM HUB BORE MM. MAX. LOAD LB. APP. WT. LB. REPL. CAP* MATL #. PART #
22X10
 8X170 5.0 -12 3180.59 3640 51 250396 90000030413 3220170
22X10
 8X6.50 5.0 -12 3180.59 3640 51 250396 90000030412 3220482
22X12
 8X170 4.8 -44 3180.59 3640 57 250396 90000030366 3222170
22X12
 8X180 5.2 -32 3157.47 3640 56 250396 90000030367 3222180

IMPORTANT WHEEL FITMENT NOTES

All Mickey Thompson Classic Series, SideBiter®, and M/T Metal Series wheels require (60-Degree) Bulge Acorn (Cone Bulge) Seat Lug Nuts. Mickey Thompson recommends Duplex Bulge Acorn Lug Nuts on vehicles of GVWR of 6,500 lbs. or greater.

All Deegan 38 Series wheels use 60 Degree Conical Bulge Seat lugs but will also accept E/T Style lug nuts which provide a lug-centric installation.

For All 6x5.5 Bolt Circle Wheels: Hub Centering Ring included for late Model Chevrolet/GMC applications.

Center caps are not available for certain applications including 1997 & earlier Ford 3/4 & 1-ton pickups, 2002 & earlier Dodge/Ram 3/4 & 1-ton pickups, 1986 & earlier Jeep, CJ models & earlier Toyota Land Cruiser models.

Open caps are available for 5, 6 and 8 lug Classic Series wheels, separately.

NOTE: All dual drill wheels in the MT METAL line are cover-style caps—no exposed lugs.
