Baja Pro™ XS

WORLD’S TALLEST D.O.T APPROVED LIGHT TRUCK TIRE

The Baja Pro XS is the necessary tire for your ON and OFF-ROAD rig.
With a tough 4-ply construction, this tire can handle any terrain.

  • Directional Tread Pattern for balanced forward bite
  • Circumferential Tread Elements for lateral grip
  • Siping for smooth surface traction and additional lug flex
  • Angled Shoulder Scallops to guide mud and loose earth into SideBiter Cleats
  • Mud Scoops provide a concave surface and create a void to keep mud from adhering
  • 27/32 of Tread Depth
  • Designed, Developed and Manufactured proudly in the USA

Sizes

16 INCH

TIRE SIZE /
EQUIV. SIZE		 LOAD
RANGE		 SIDEWALL SERVICE
DESC		 MEAS RIM
APPROVED RIMS		 MAX LOAD
MAX INFL		 O.D. IN. SECT. WIDTH IN. TREAD WIDTH IN. TREAD DEPTH 32NDS APX. WT. LBS. MATL #. PART #
19.5/46-16LT
 C BLK 14.0
12.0-16.0		 3,970 lbs @
40 psi.		 46.4 21.1 16.5 27.0 149 250099 41669

17 INCH

TIRE SIZE /
EQUIV. SIZE		 LOAD
RANGE		 SIDEWALL SERVICE
DESC		 MEAS RIM
APPROVED RIMS		 MAX LOAD
MAX INFL		 O.D. IN. SECT. WIDTH IN. TREAD WIDTH IN. TREAD DEPTH 32NDS APX. WT. LBS. MATL #. PART #
15/43-17LT
 C BLK 11.5
9.5-12.5		 3195 lbs @
40 psi.		 42.3 18.3 13.9 27.0 125 90000036760 41735
35X13.50-17LT
 C BLK 11.0
9.5-12.0		 2470 lbs @
30 psi.		 34.6 14.0 11.5 27.0 74 90000037615 41753
38X13.50-17LT
 D BLK 11.0
9.0-11.5		 3195 lbs @
55 psi.		 37.9 15.3 11.8 27.0 90 90000037616 41783
40X13.50-17LT
 C BLK 11.0
9.0-11.5		 3195 lbs @
40 psi.		 39.6 15.5 11.7 27.0 99 90000037617 41703

20 INCH

TIRE SIZE /
EQUIV. SIZE		 LOAD
RANGE		 SIDEWALL SERVICE
DESC		 MEAS RIM
APPROVED RIMS		 MAX LOAD
MAX INFL		 O.D. IN. SECT. WIDTH IN. TREAD WIDTH IN. TREAD DEPTH 32NDS APX. WT. LBS. MATL #. PART #
15/43-20LT
 C BLK 11.5
9.5-12.5		 3935 lbs @
40 psi.		 42.6 18.0 14.2 27.0 131 90000036759 41035
17/49-20LT
 C BLK 13.0
11.0-14.0		 3,970 lbs @
40 psi.		 47.5 19.9 14.1 27.0 162 250101 41097
19.5/46-20LT
 C BLK 14.0
12.0-16.0		 3970 lbs @
40 psi.		 46.3 19.9 16.1 27.0 149 90000036757 41069
19.5/54-20LT
 C BLK 12.0
12.0-16.0		 3,970 lbs @
40 psi.		 53.7 21.6 16.9 27.0 194 250102 41049

24 INCH

TIRE SIZE /
EQUIV. SIZE		 LOAD
RANGE		 SIDEWALL SERVICE
DESC		 MEAS RIM
APPROVED RIMS		 MAX LOAD
MAX INFL		 O.D. IN. SECT. WIDTH IN. TREAD WIDTH IN. TREAD DEPTH 32NDS APX. WT. LBS. MATL #. PART #
21/58-24LT
 C BLK 16.5
13.5-17.5		 3970 lbs @
40 psi.		 57.8 22.8 17.6 27.0 233 90000036753 41481

Quality + Construction

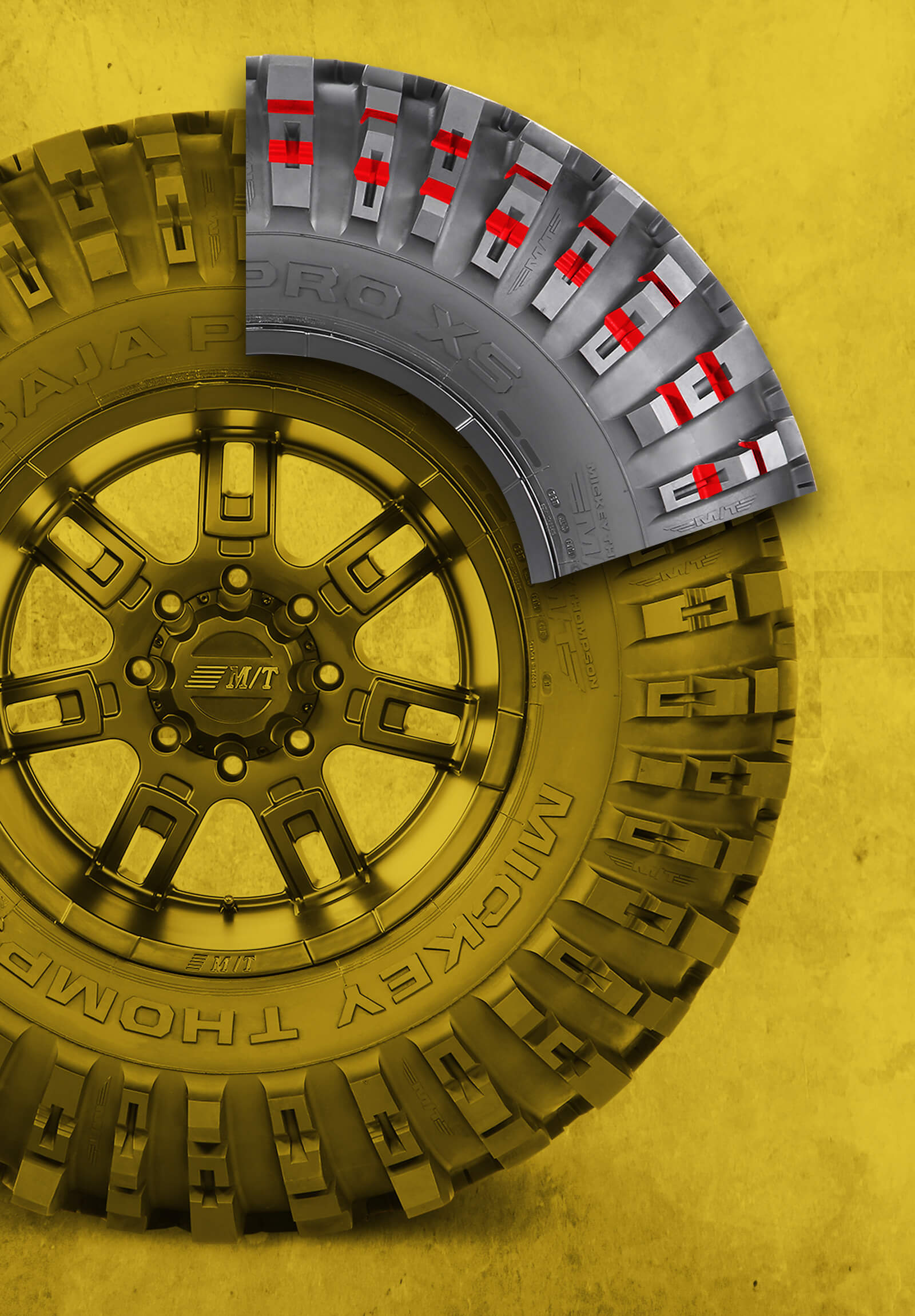

Dual Decoupling Grooves

For increased Sidewall flex.

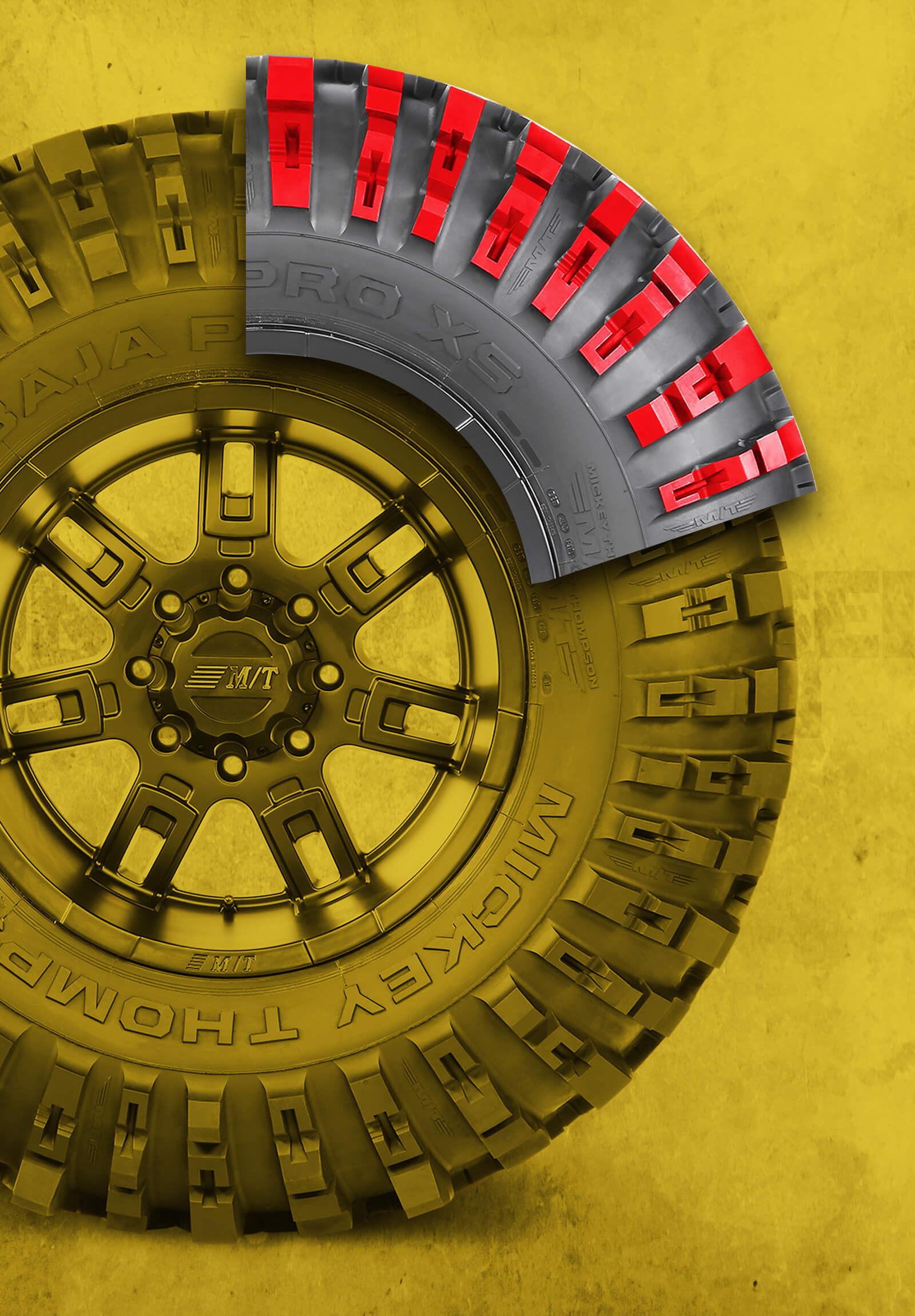

Four-Pitch SideBiter Pattern

For distributed traction and additional protection

Mud Scoops

Provide a concave surface and create a void to keep mud from adhering

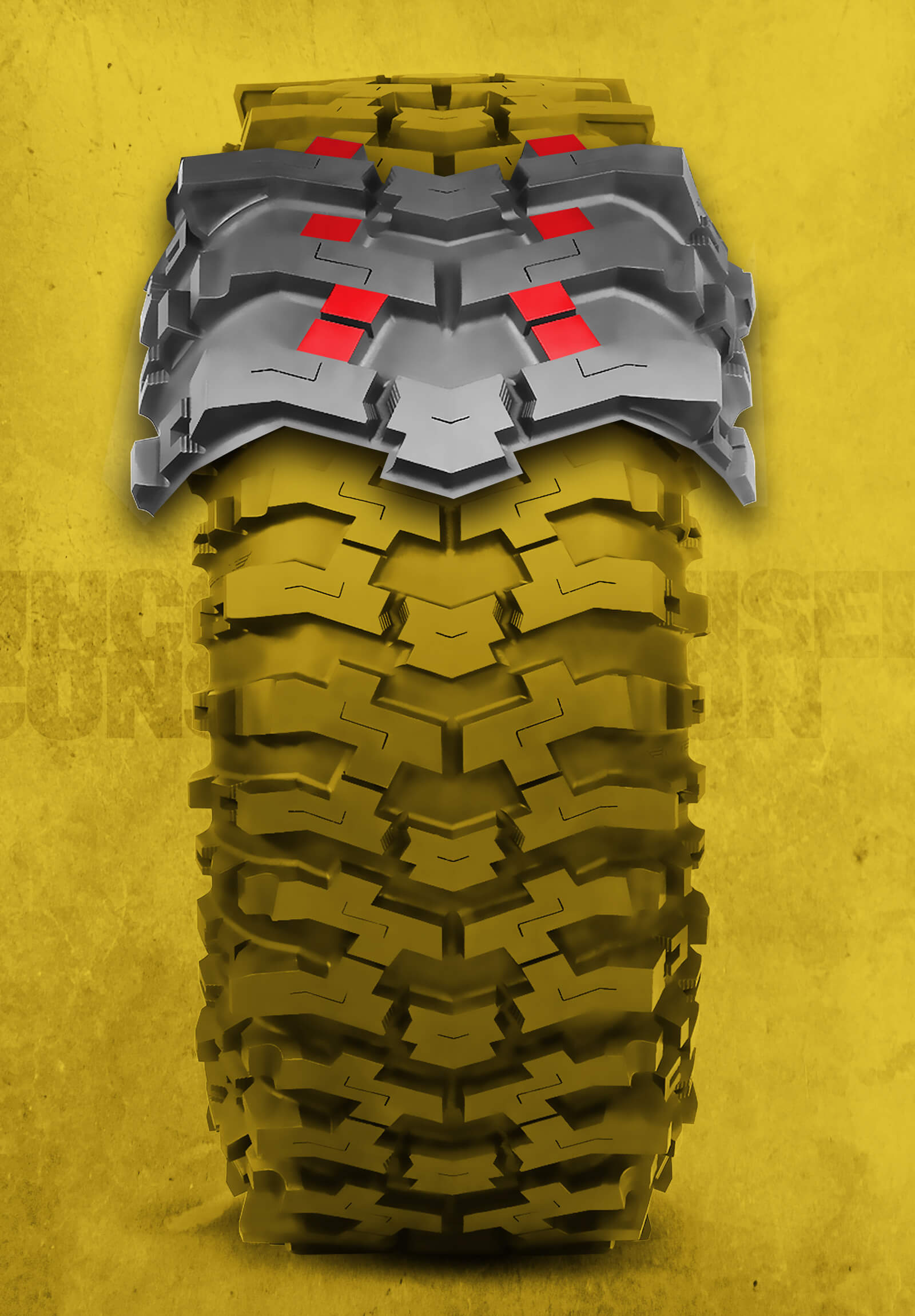

Circumferential Tread Elements

For Increased lateral grip

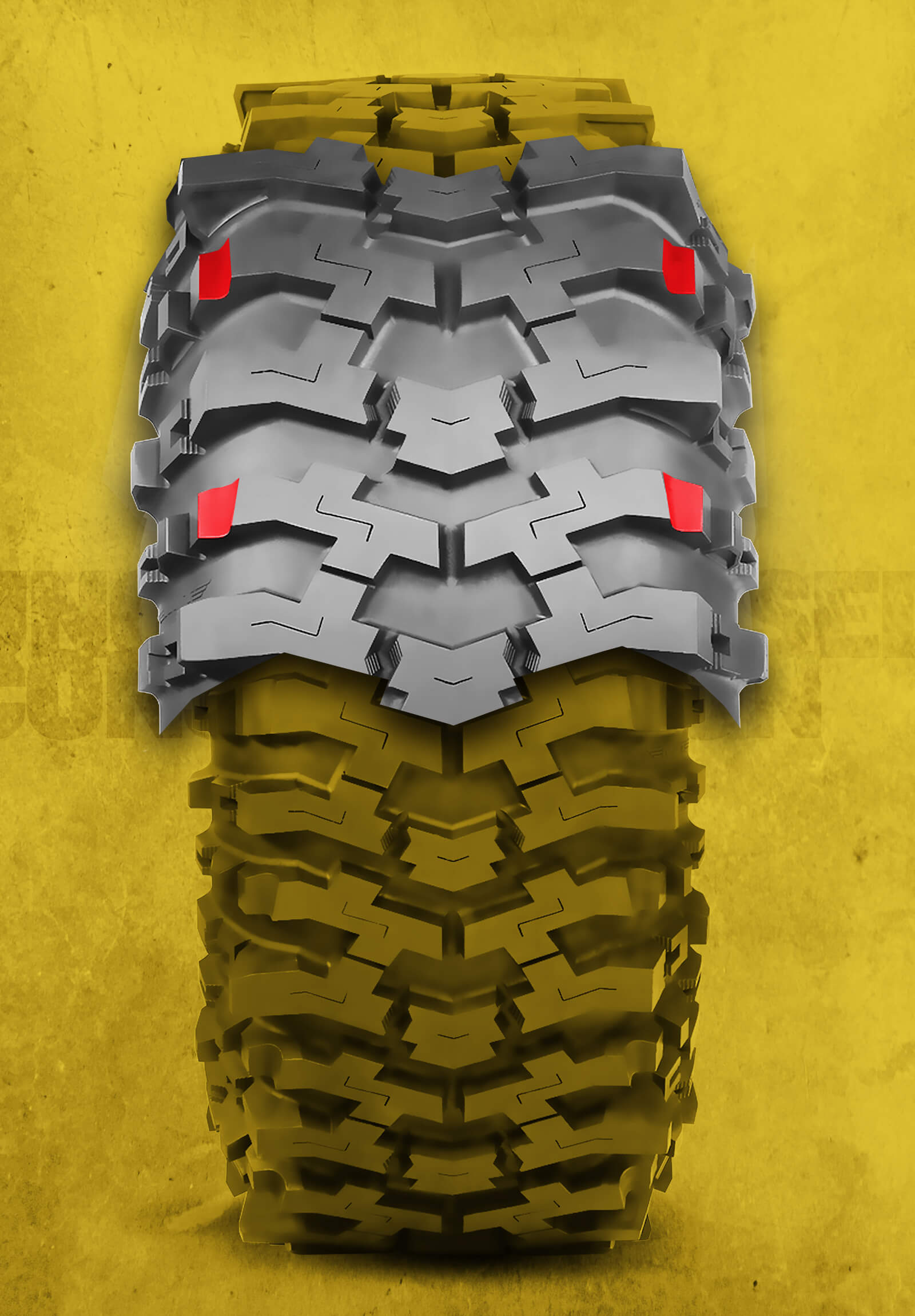

Angled Shoulder Scallops

To guide mud and loose earth into SideBiter Cleats

Note: All specifications are for single rear tire applications.
