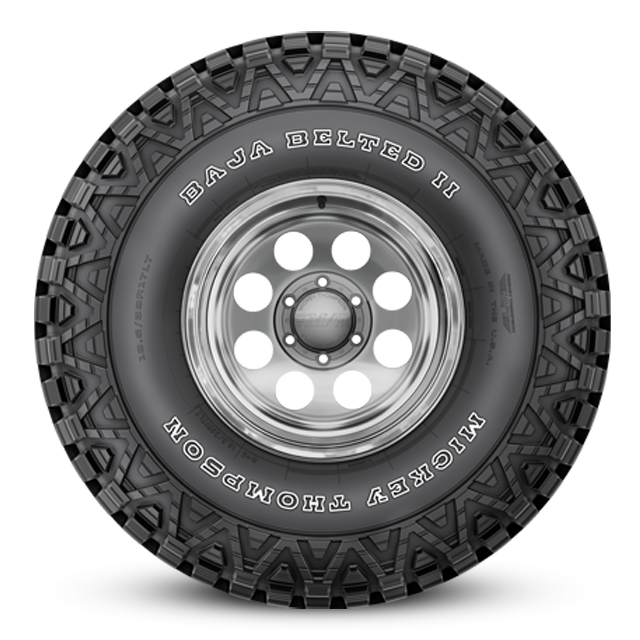

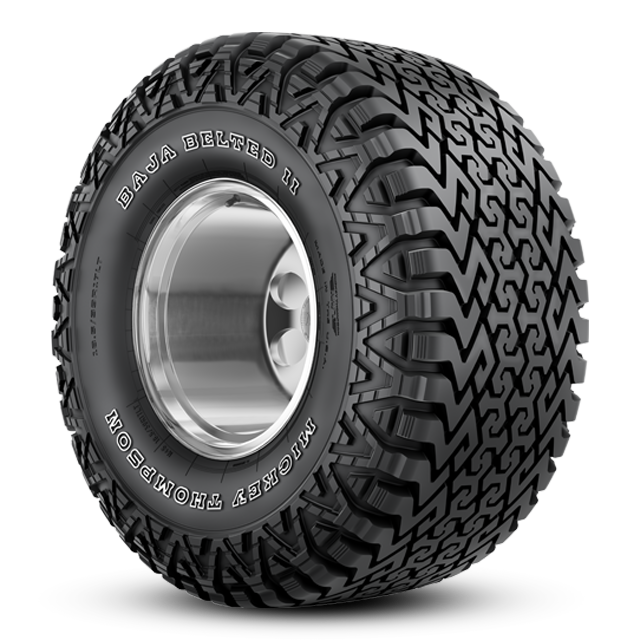

Baja Belted™ II

Premium Extreme Terrain

Born from the deserts and reimagined for today, the Mickey Thompson Baja Belted™ II is here. A modern evolution of an off-road legend, the Baja Belted™ II captures the aggressive style of the 1980s lifted 4x4 era, now engineered for today’s demands. Available in wide fitments for 15" and 16" wheels, innovative 17" sizes to clear modern brake systems, and unrivaled sizing for 26" and 30" wheels, the Baja Belted™ II brings iconic attitude to both vintage rigs and modern show builds. With its unmistakable styling and extreme sizing, it delivers a look that ensures your truck or SUV stands out from the crowd.

  • Steel-belted radial construction* minimizes flat-spotting and enhances ride quality.

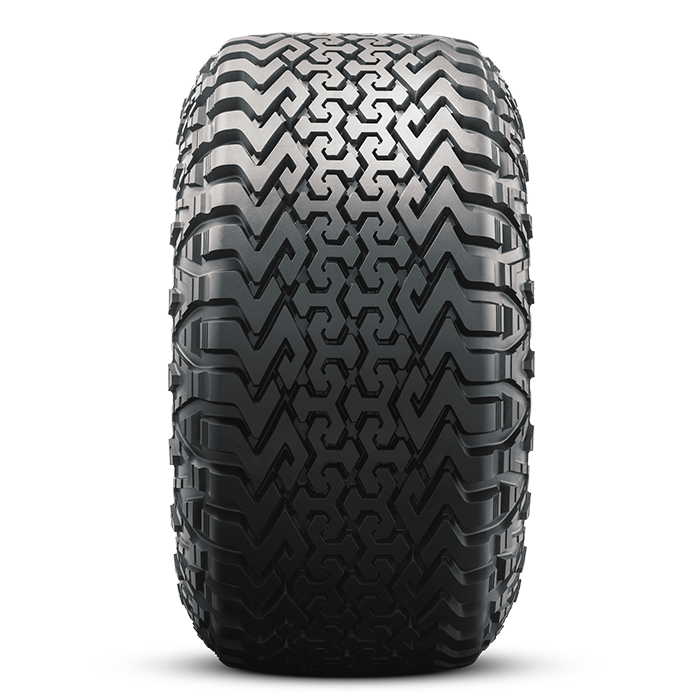

  • Precision-tuned tread pattern for a smoother ride, longer wear, and reduced road noise
  • Deep, variable-depth SideBiter®
  • Classic raised white letters (OWL) on one side of 15", 16", and 17" sizes for authentic vintage style
  • Wide footprint designed to maximize flotation and performance in sandy terrain
  • Non-directional tread pattern allows for easy cross-rotation to extend tire life

*Select Sizes

  • Sizes
  • Quality + Construction

Sizes

15 INCH

TIRE SIZE /
EQUIV. SIZE		 LOAD
RANGE		 SIDEWALL SERVICE
DESC		 MEAS RIM
APPROVED RIMS		 MAX LOAD
MAX INFL		 O.D. IN. SECT. WIDTH IN. TREAD WIDTH IN. TREAD DEPTH 32NDS APX. WT. LBS. MATL #. PART # PRODUCT CODE CROSS REF#
17/36R15LT
 C OWL 120P 13.5
12.0-15.5 		3,085 lbs @
35 psi.		 35.8 17.0 0.0 18.5 TBD 276342 276342 331315050 276342
18.5/39R15LT
 C OWL 120P 15.0
13.0-16.5 		3,085 lbs @
35 psi.		 38.8 18.6 0.0 21.0 TBD 276343 276343 331316050 276343
33X15.50R15LT
 D OWL 120P 12.5
11.0-14.0 		3,085 lbs @
50 psi.		 32.8 15.5 0.0 18.5 TBD 276341 276341 331314050 276341

16 INCH

TIRE SIZE /
EQUIV. SIZE		 LOAD
RANGE		 SIDEWALL SERVICE
DESC		 MEAS RIM
APPROVED RIMS		 MAX LOAD
MAX INFL		 O.D. IN. SECT. WIDTH IN. TREAD WIDTH IN. TREAD DEPTH 32NDS APX. WT. LBS. MATL #. PART # PRODUCT CODE CROSS REF#
17/36R16LT
 D OWL 123P 13.5
12.0-15.5 		3,415 lbs @
50 psi.		 35.8 17.0 0.0 18.5 TBD 276345 276345 331318050 276345
18.5/39R16LT
 C OWL 123P 15.0
13.0-16.5 		3,415 lbs @
35 psi.		 38.8 18.6 0.0 21.0 TBD 276346 276346 331319050 276346
33X15.50R16LT
 E OWL 124P 12.5
11.0-14.0 		3,525 lbs @
65 psi.		 32.8 15.5 0.0 18.5 TBD 276344 276344 331317050 276344

17 INCH

TIRE SIZE /
EQUIV. SIZE		 LOAD
RANGE		 SIDEWALL SERVICE
DESC		 MEAS RIM
APPROVED RIMS		 MAX LOAD
MAX INFL		 O.D. IN. SECT. WIDTH IN. TREAD WIDTH IN. TREAD DEPTH 32NDS APX. WT. LBS. MATL #. PART # PRODUCT CODE CROSS REF#
17/36R17LT
 D OWL 125P 13.5
12.0-15.5 		3,640 lbs @
50 psi.		 35.8 17.0 0.0 18.5 TBD 276348 276348 331321050 276348
18.5/39R17LT
 C OWL 125P 15.0
13.0-16.5 		3,640 lbs @
35 psi.		 38.8 18.6 0.0 21.0 TBD 276349 276349 331322050 276349
20/44-17LT
 C OWL 126P 16.0
13.0-17.0 		3,750 lbs @
30 psi.		 43.8 20.0 0.0 21.0 TBD 276351 276351 331324052 276351
33X15.50R17LT
 F OWL 127P 12.5
11.0-14.0 		3,860 lbs @
80 psi.		 32.8 15.5 0.0 18.5 TBD 276347 276347 331320050 276347

20 INCH

TIRE SIZE /
EQUIV. SIZE		 LOAD
RANGE		 SIDEWALL SERVICE
DESC		 MEAS RIM
APPROVED RIMS		 MAX LOAD
MAX INFL		 O.D. IN. SECT. WIDTH IN. TREAD WIDTH IN. TREAD DEPTH 32NDS APX. WT. LBS. MATL #. PART # PRODUCT CODE CROSS REF#
18.5/39R20LT
 D BLK 126P 15.0
13.0-16.5 		3,750 lbs @
50 psi.		 38.8 18.6 0.0 21.0 TBD 276350 276350 331323051 276350
20/44-20LT
 C BLK 126P 16.0
14.0-18.0 		3,750 lbs @
30 psi.		 43.8 20.0 0.0 21.0 TBD 276352 276352 331325053 276352

26 INCH

TIRE SIZE /
EQUIV. SIZE		 LOAD
RANGE		 SIDEWALL SERVICE
DESC		 MEAS RIM
APPROVED RIMS		 MAX LOAD
MAX INFL		 O.D. IN. SECT. WIDTH IN. TREAD WIDTH IN. TREAD DEPTH 32NDS APX. WT. LBS. MATL #. PART # PRODUCT CODE CROSS REF#
18.5/39-26LT
 F BLK 126P 16.5
15.5-18.5 		3,750 lbs @
75 psi.		 38.8 18.4 0.0 21.0 TBD 276353 276353 331326053 276353

30 INCH

TIRE SIZE /
EQUIV. SIZE		 LOAD
RANGE		 SIDEWALL SERVICE
DESC		 MEAS RIM
APPROVED RIMS		 MAX LOAD
MAX INFL		 O.D. IN. SECT. WIDTH IN. TREAD WIDTH IN. TREAD DEPTH 32NDS APX. WT. LBS. MATL #. PART # PRODUCT CODE CROSS REF#
19/44-30LT
 D BLK 125P 17.0
16.0-19.0 		3,640 lbs @
45 psi.		 43.8 19.0 0.0 21.0 TBD 276354 276354 331327053 276354

Quality + Construction

Note: All specifications are for single rear tire applications.
